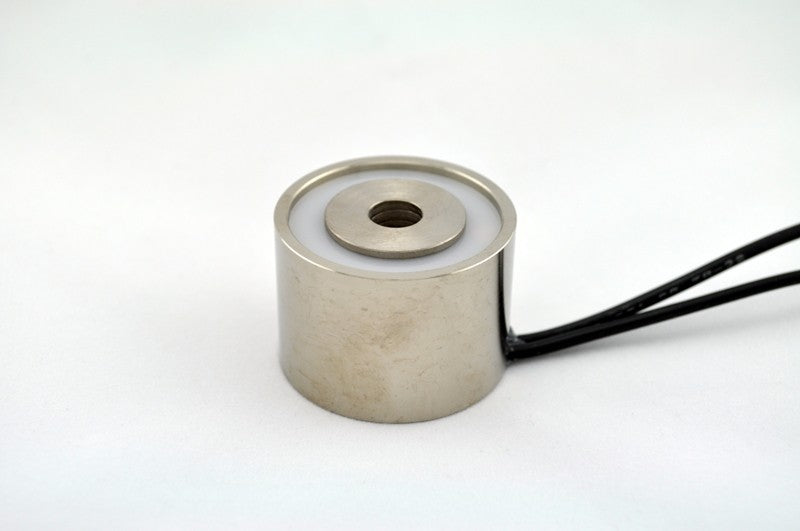

EM150-24ac-122 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs.

$39.81
Skip to product information
EM150-24ac-122 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs. image 0
SKU: 5863

EM150-24ac-122 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs.

$39.81
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

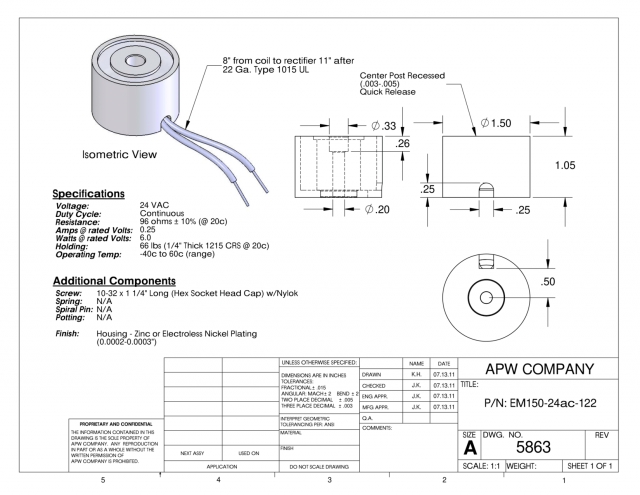

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
AC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24ac-122 is a round electromagnet with a 1.5 inch diameter, designed to hold up to 66 lbs. This high-quality and precision-made product operates at 24 volts AC and is ideal for a wide range of applications, including automotive, robotics, and manufacturing. The efficient and reliable design ensures stable performance and long lifespan. With its powerful holding capacity and reliable operation, the EM150-24ac-122 is an excellent choice for mechanical and electrical engineers looking for a high-quality and versatile electromagnet.
