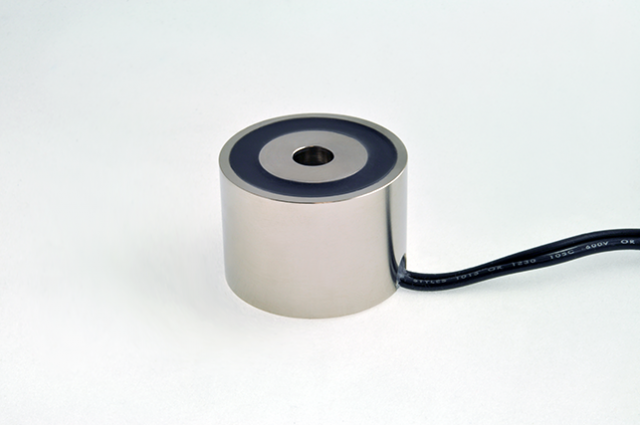

EM150-24ac-112 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs. image 0

EM150-24ac-112 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs.

$43.98
Skip to product information
EM150-24ac-112 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs. image 0
SKU: 5419

EM150-24ac-112 - Round Electromagnet 1.5 inch Dia. 24 volts AC - Holding 66 lbs.

$43.98
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

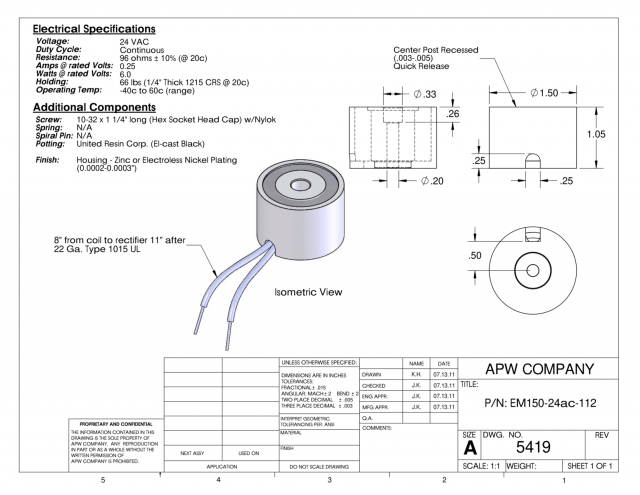

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
AC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24ac-112 Round Electromagnet is a high-quality, precision-made product designed for applications requiring a holding force of up to 66 lbs. With a diameter of 1.5 inches and 24 volts AC, this electromagnet is suitable for use in various industrial, mechanical, and electrical settings where a reliable and strong magnetic field is required. Common applications include clamping, holding, and lifting metal objects in manufacturing and assembly lines, security systems, and magnetic door locks. This electromagnet is built to last and provides consistent performance even under extreme conditions.
