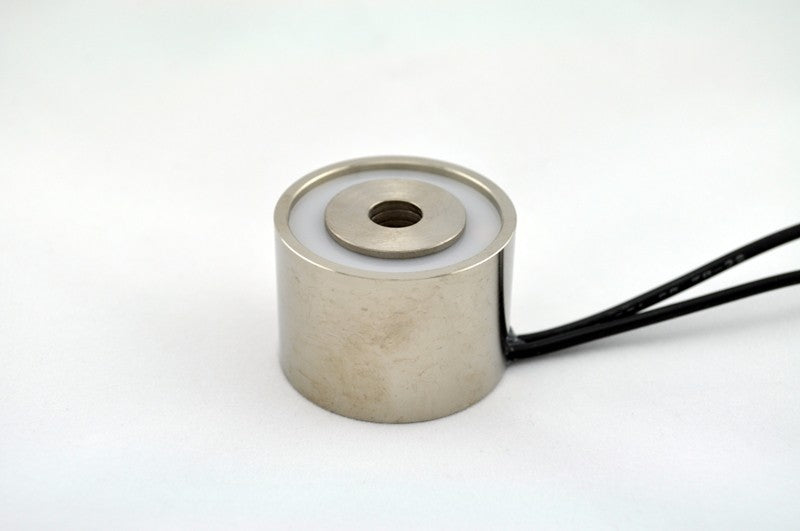

EM150-24-222 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs. image 0

EM150-24-222 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.

$30.62
Skip to product information
EM150-24-222 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs. image 0
SKU: 5858

EM150-24-222 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.

$30.62

4 in stock

Quantity
Discount (%)
Price

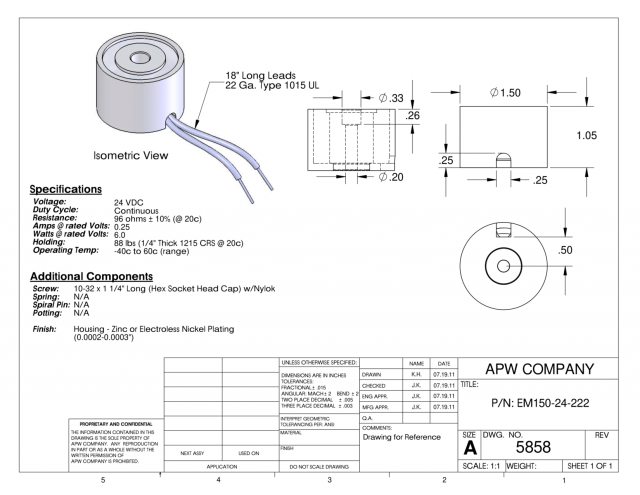

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-222 is a high-quality, precision-made round electromagnet designed for a wide range of mechanical and electrical applications. With a holding capacity of 88 lbs., this 1.5 inch diameter electromagnet is powered by 24 volts DC, making it ideal for use in a variety of industrial, automotive, and aerospace settings. The EM150-24-222 is made from durable materials to ensure reliable and long-lasting performance in even the most demanding environments. From robotics and automation to security systems and door locks, this electromagnet is a versatile solution for any application requiring strong magnetic holding force.
