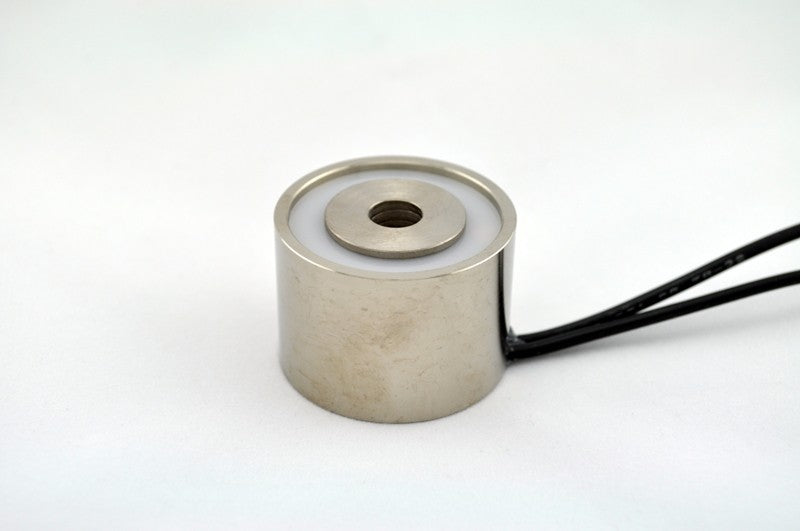

EM150-24-221 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs. image 0

EM150-24-221 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.

$32.53
Skip to product information
EM150-24-221 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs. image 0
SKU: 5835

EM150-24-221 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.

$32.53

1 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-221 Round Electromagnet is a highly efficient product designed for a variety of applications that require a holding force of up to 88 pounds. This electromagnet is made with high-quality materials to ensure durability and precision in its operation. It is suitable for use in a range of industries, including automotive, aerospace, robotics, and machinery. The product is designed for use with 24 volts DC and is highly reliable, making it an excellent choice for a wide range of applications that require a strong, reliable holding force.
