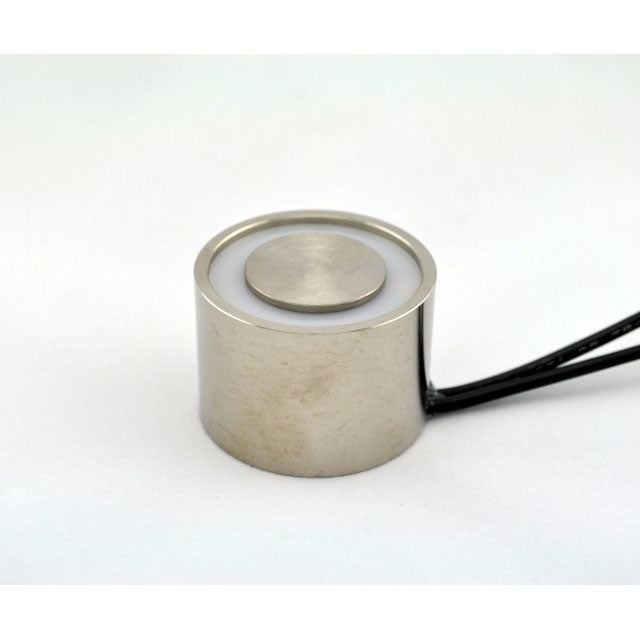

EM150-24-212-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs. image 0

EM150-24-212-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs.

$37.32
Skip to product information
EM150-24-212-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs. image 0
SKU: 6639

EM150-24-212-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs.

$37.32
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

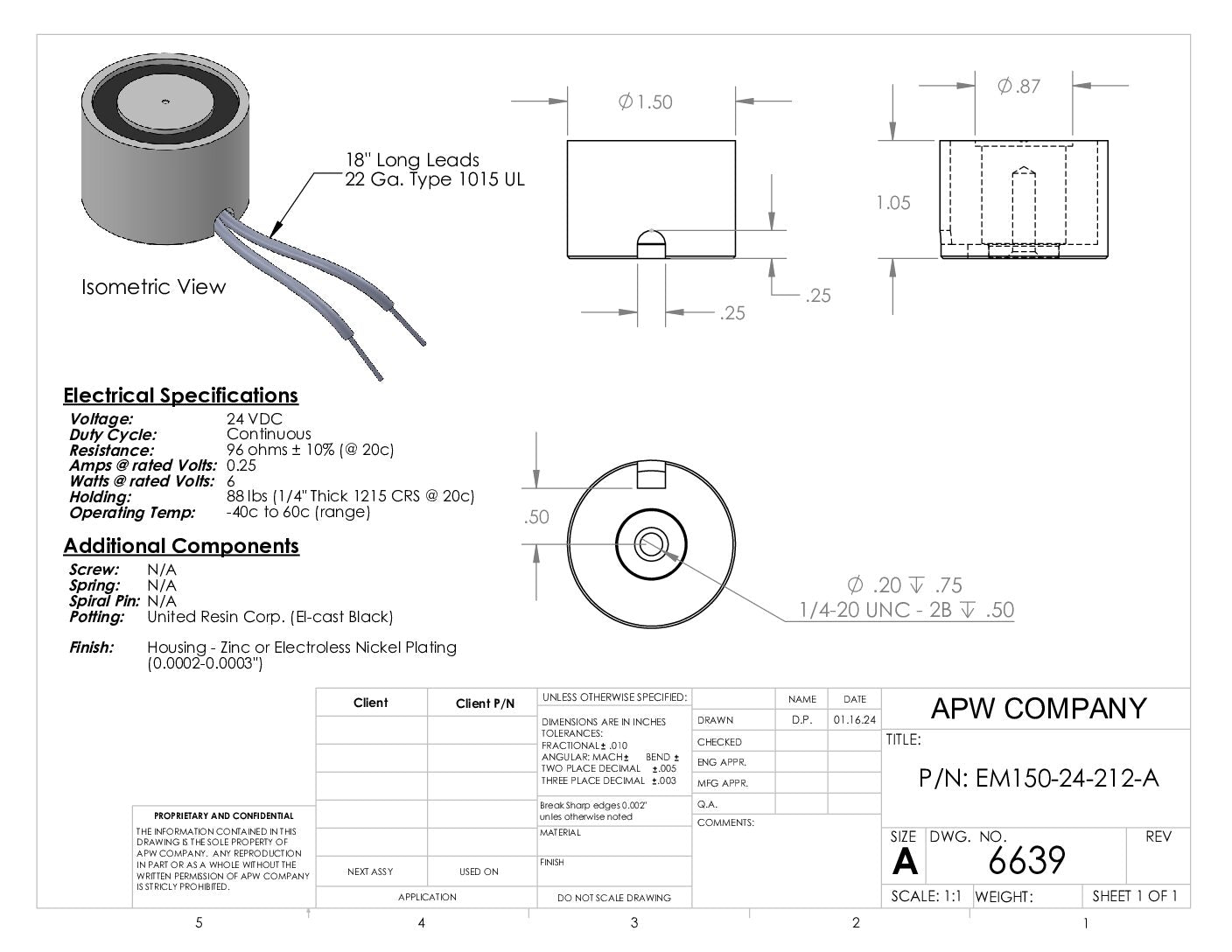

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Mounting Option
Rear Tapped 1/4-20
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-212-A Round Electromagnet is a high-performance device designed for mechanical and electrical engineering applications. With a holding capacity of 88 lbs, this electromagnet is ideal for use in demanding environments where a strong and reliable magnetic force is required. Its precision manufacturing ensures a high-quality product with long-term durability. Common applications of the EM150-24-212-A electromagnet include magnetic locks, latches, and closures, as well as robotics, manufacturing, and automation equipment. Its compact size and low voltage requirements make it versatile and suitable for a range of applications.
