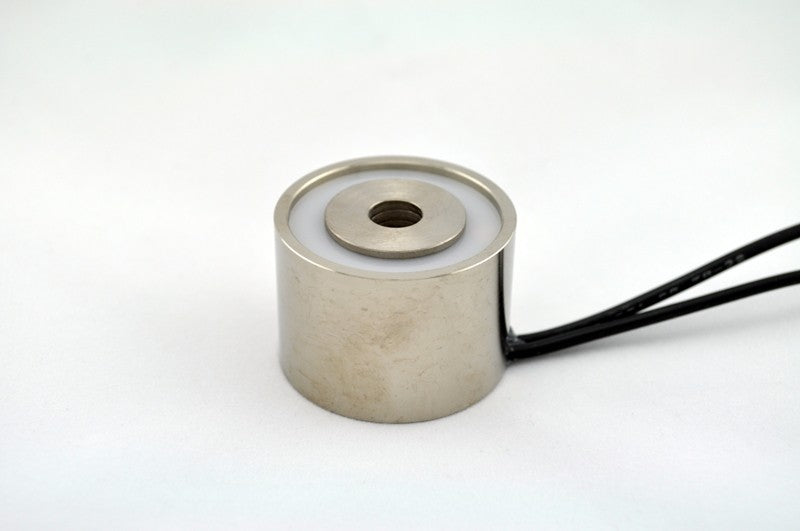

EM150-24-122 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$30.62
Skip to product information
EM150-24-122 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0
SKU: 5866

EM150-24-122 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$30.62

49 in stock

Quantity
Discount (%)
Price

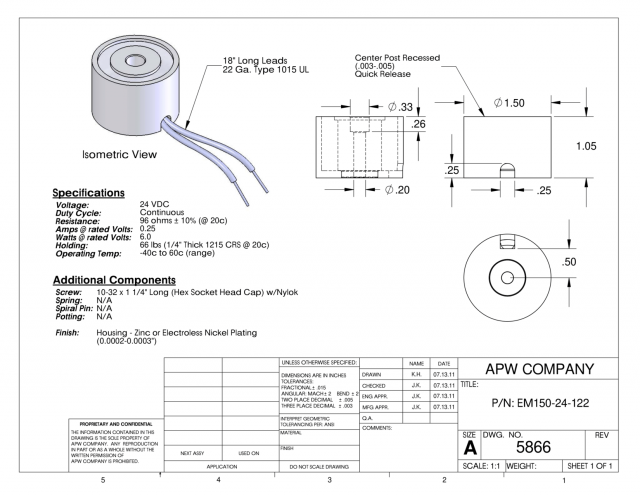

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-122 Round Electromagnet is a precision-made high-quality product that is designed for mechanical and electrical engineers. The electromagnet is 1.5 inches in diameter and operates at 24 volts DC, with a holding capacity of 66 lbs. It is ideal for applications where strong magnetic forces are required to hold objects securely in place, such as robotics, automation, and industrial manufacturing. This product is designed to provide reliable and efficient performance, and its rugged construction ensures long-lasting durability even in demanding environments.
