EM150-24-121 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0

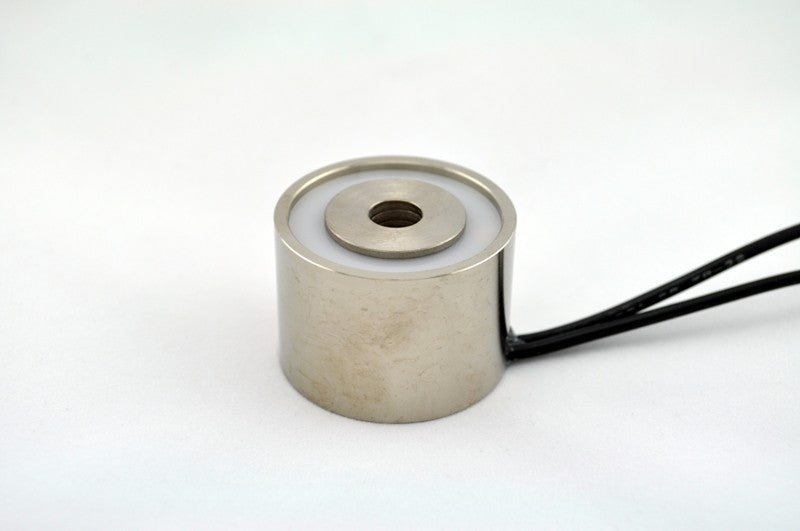

EM150-24-121 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$32.53
Skip to product information
EM150-24-121 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0
SKU: 5726

EM150-24-121 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$32.53

122 in stock

Quantity
Discount (%)
Price

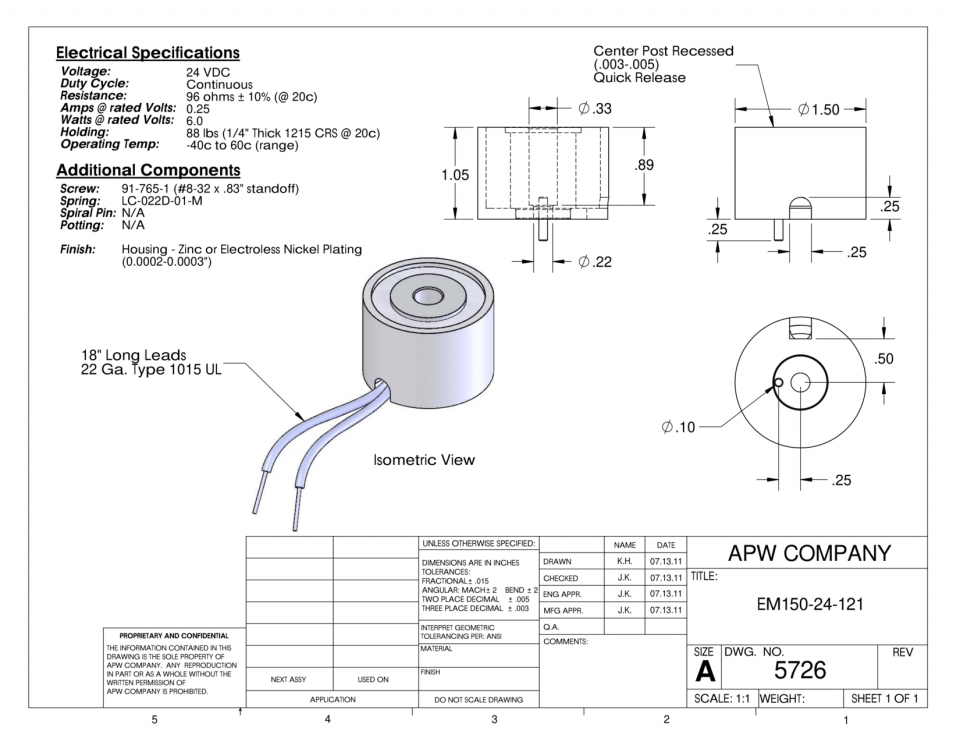

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
91-765-1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-121 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications that require a powerful holding force. With a diameter of 1.5 inches and the ability to hold up to 66 lbs. of weight, this device is ideal for applications where a large and reliable solution is required. The electromagnet is powered by 24 volts DC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM150-24-121 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
