EM150-24-121-A - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0

EM150-24-121-A - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$32.53
Skip to product information
EM150-24-121-A - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0
SKU: 6305

EM150-24-121-A - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$32.53
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

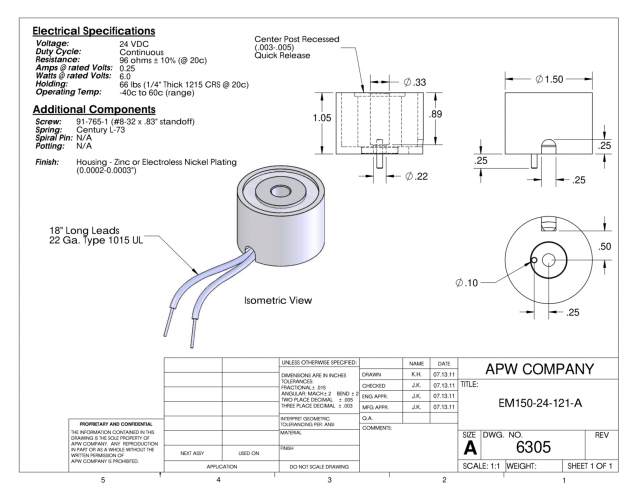

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
91-765-1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

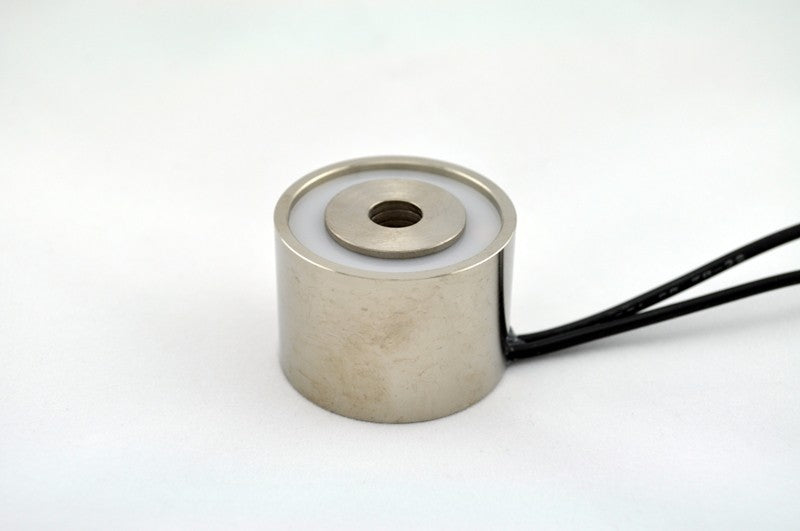

The EM150-24-121-A Round Electromagnet is a high-quality, precision-made product designed for use in a wide range of industrial applications. With a diameter of 1.5 inches, and a holding force of 66 lbs at 24 volts DC, this electromagnet is suitable for use in automation systems, robotics, and material handling equipment. Its high-grade materials ensure a long lifespan, while its compact size allows for easy integration into existing systems. Whether you need to hold or release materials, the EM150-24-121-A is a reliable and efficient solution.
