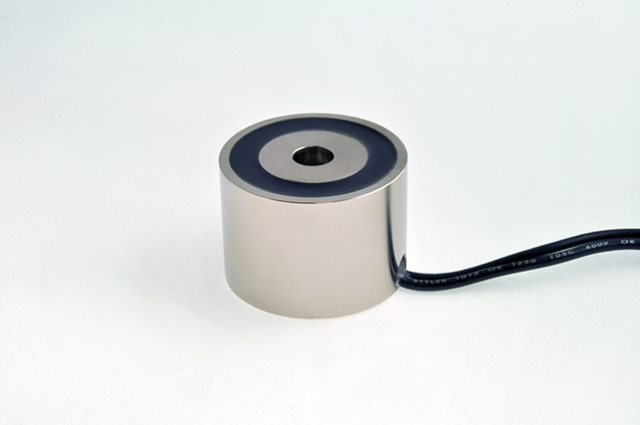

EM150-24-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0

EM150-24-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$37.32
Skip to product information
EM150-24-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs. image 0
SKU: 5422

EM150-24-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.

$37.32

8 in stock

Quantity
Discount (%)
Price

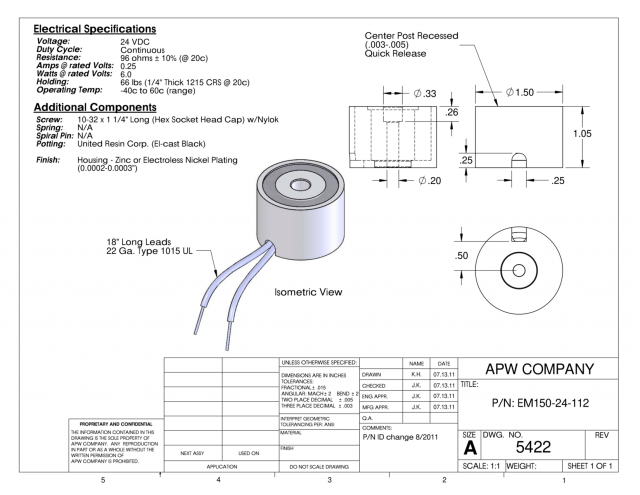

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-24-112 is a high-quality round electromagnet with a 1.5-inch diameter, designed to hold up to 66 pounds of weight when energized by 24 volts DC. Made with precision engineering, this product is suitable for use in a range of applications where electromagnets are required, such as robotics, material handling, and automation. The electromagnet is constructed to withstand high temperatures and harsh environments, making it a reliable and durable solution. It is specifically engineered for use with 24 volts DC power supply and is an ideal component for your next project.
