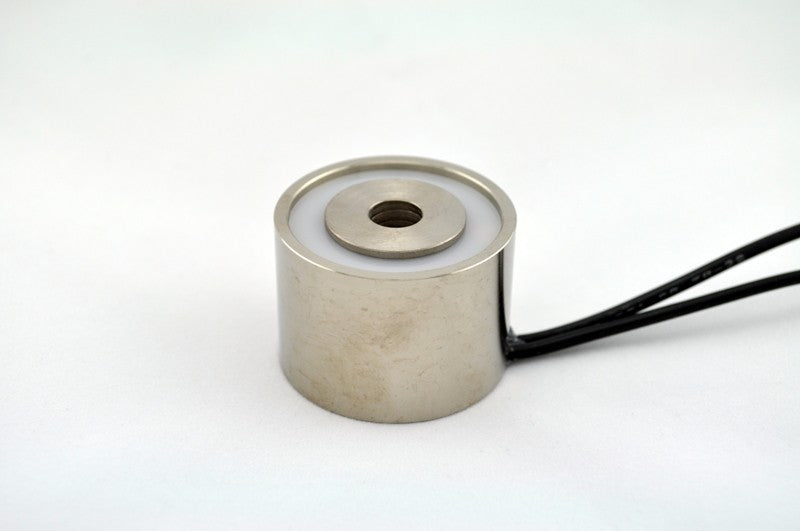

EM150-12-221 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.
SKU: 6423

EM150-12-221 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.

$32.53
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

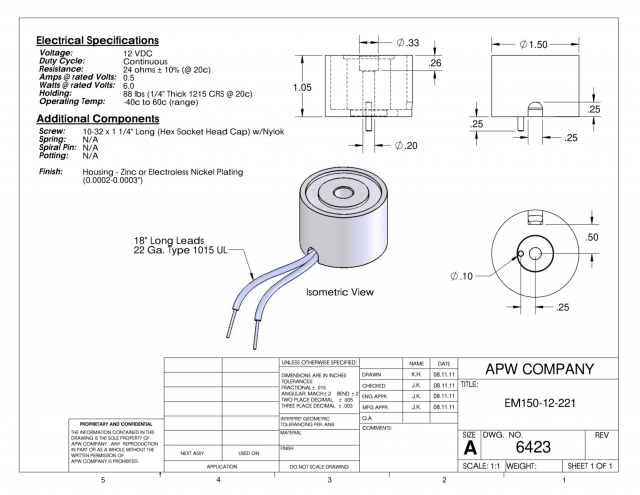

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-12-221 Round Electromagnet is a high-quality, precision-made product designed for use in applications where strong holding force is required. With a diameter of 1.5 inches and 12 volts DC, this electromagnet is capable of holding up to 88 lbs. Some common applications include door locks, security systems, and industrial machinery. Made with high-quality materials and manufactured to exacting standards, the EM150-12-221 is a reliable and effective solution for any electromagnet application requiring a strong holding force.

SKU: 6423
Category: Electromagnets
Tags: 0.5 , 1.5 inch Diameter , 10-32 x 1 1/4 , 12 , 12V DC , 88 , 88 lbs Capacity , Continuous , DC , Electromagnet , Electromagnets > Round Electromagnets , Holding Force , Magnetic Attraction , Magnetic Field , Magnetic Pull , No , Round Magnet , Solenoid , Through-Hole w/ Shoulder Bolt , Yes
