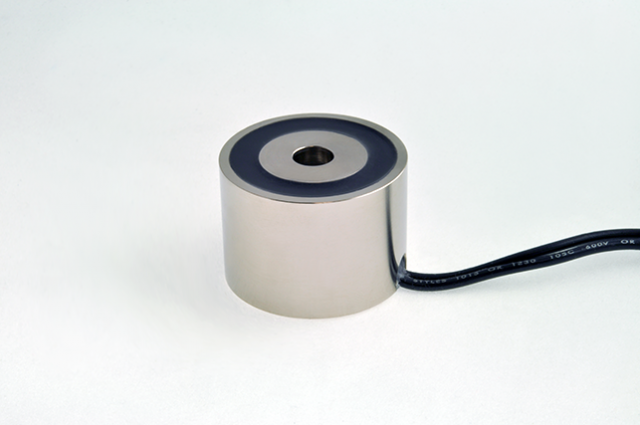

EM150-12-212 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs. image 0

EM150-12-212 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.

$37.31
Skip to product information
EM150-12-212 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs. image 0
SKU: 4731

EM150-12-212 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.

$37.31

47 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-12-212 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications that require a powerful holding force. With a diameter of 1.5 inches and the ability to hold up to 88 lbs. of weight, this device is ideal for applications where a large and reliable solution is required. The electromagnet is powered by 12 volts DC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM150-12-212 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
