SKU:
7031

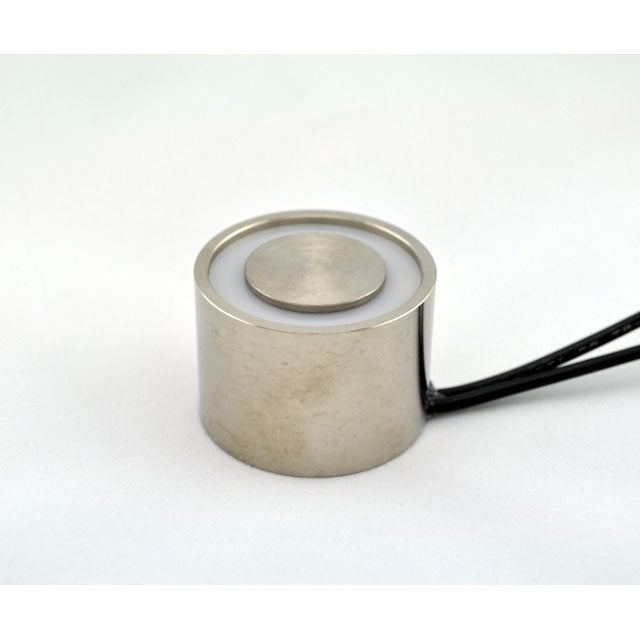

EM150-12-212-A - Round Electromagnet 1.5 inch Dia. 12 VDC - Holding 88 lbs.
$30.62
11 in stock
Specifications
Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Mounting Option
Rear Tapped 1/4-20
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2
