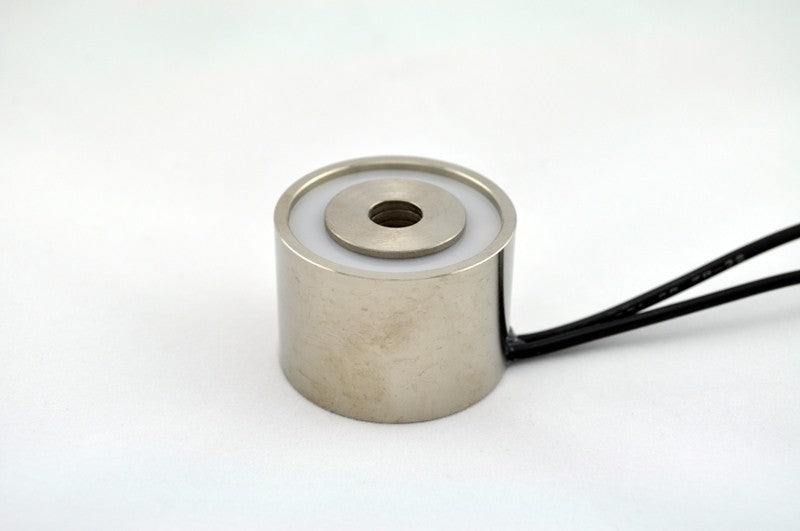

EM150-12-122 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 66 lbs. image 0

EM150-12-122 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 66 lbs.

$30.62
Skip to product information
EM150-12-122 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 66 lbs. image 0
SKU: 5867

EM150-12-122 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 66 lbs.

$30.62

16 in stock

Quantity
Discount (%)
Price

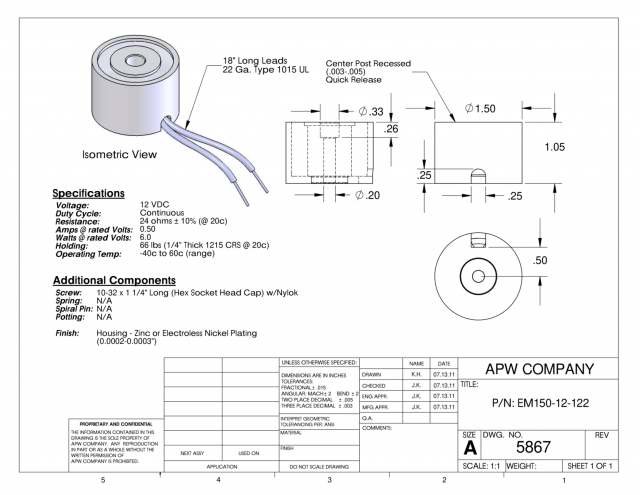

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

Product EM150-12-122 is a round electromagnet with a 1.5-inch diameter and a holding capacity of 66 lbs. It operates on 12 volts DC and is a high-quality, precision-made product. This electromagnet is suitable for a wide range of applications where a strong holding force is required, such as in door locks, vending machines, and industrial automation equipment. Its compact design and low voltage make it an ideal choice for portable and battery-powered devices. With its superior construction and reliable performance, this electromagnet is an excellent choice for any engineering project.
