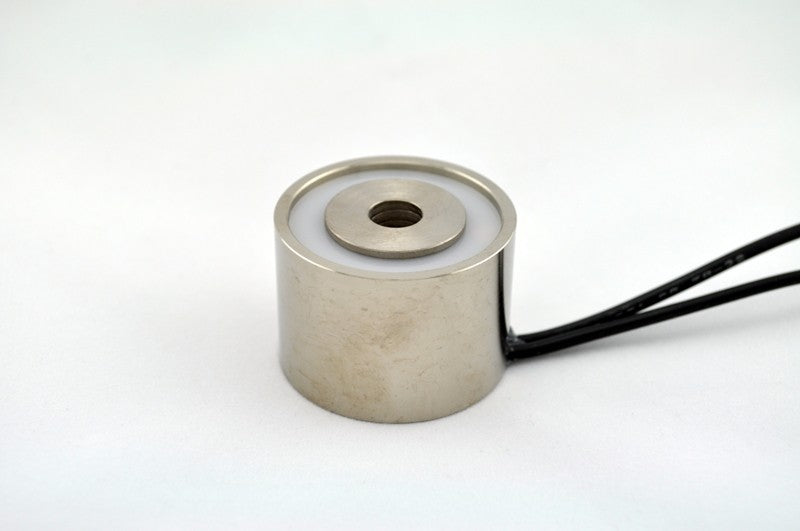

EM150-115ac-222 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 88 lbs. image 0

EM150-115ac-222 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 88 lbs.

$44.43
Skip to product information
EM150-115ac-222 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 88 lbs. image 0
SKU: 5854

EM150-115ac-222 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 88 lbs.

$44.43

1 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
460.0
Watts
28.75
Amps
0.25
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-115ac-222 is a high-quality precision-made round electromagnet designed for mechanical and electrical engineers. With a holding capacity of 88 lbs., this 1.5-inch diameter electromagnet operates at 115 volts AC, making it suitable for a wide range of applications. Electromagnets are widely used in industrial, automotive, and medical fields for tasks such as gripping, clamping, and releasing metallic objects. The EM150-115ac-222's robust construction and reliable performance make it an excellent choice for demanding applications that require a high holding force and dependable operation.
