EM150-115ac-122 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs. image 0

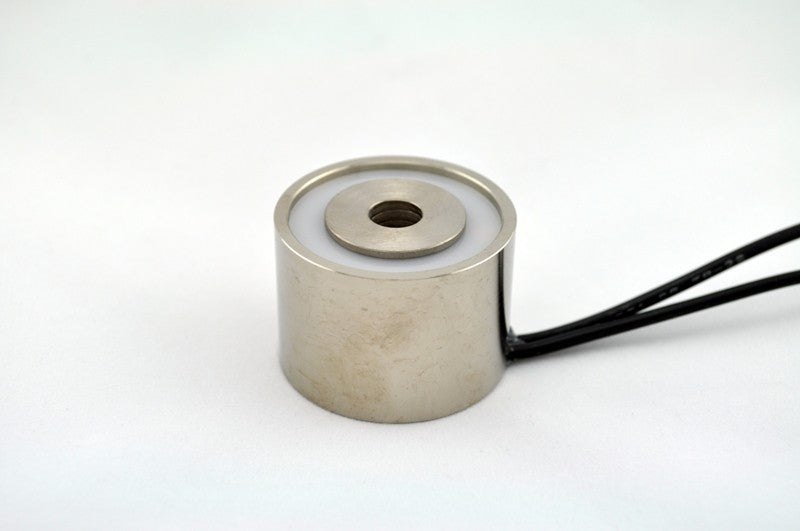

EM150-115ac-122 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.

$44.43
Skip to product information
EM150-115ac-122 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs. image 0
SKU: 5862

EM150-115ac-122 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.

$44.43

4 in stock

Quantity
Discount (%)
Price

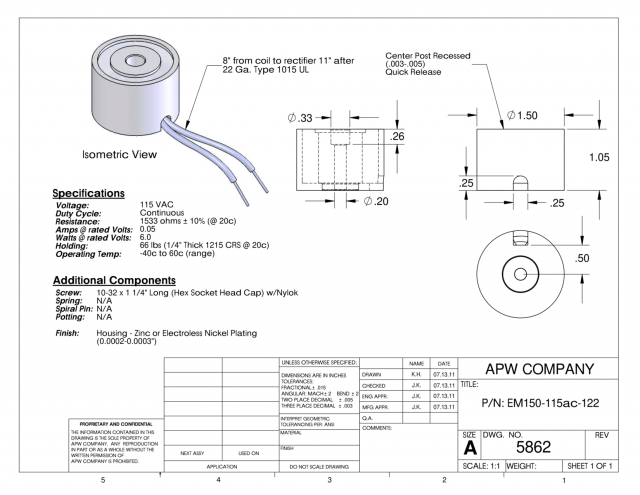

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
2300.0
Watts
5.75
Amps
0.05
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-115ac-122 is a precision-made round electromagnet with a 1.5 inch diameter and 115 volts AC. It is capable of holding 66 lbs. and is suitable for various applications, such as industrial automation, robotics, and automotive engineering. This high-quality product is built to last and can withstand demanding environments. The round electromagnet is an essential component in many electrical and mechanical systems, and the EM150-115ac-122 is a reliable and precise option for those in need of a strong holding force with AC power.
