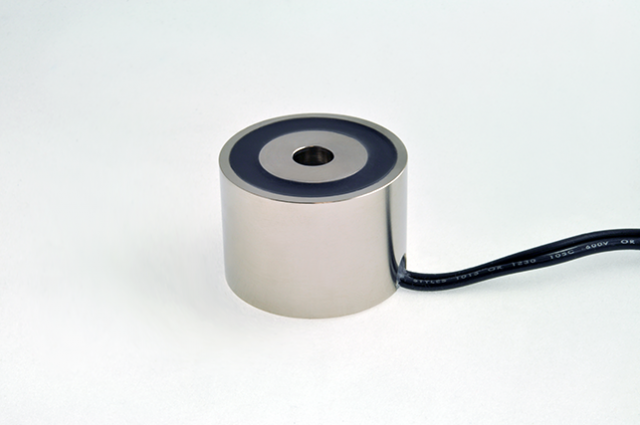

EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs. image 0

EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.

$46.31
Skip to product information
EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs. image 0
SKU: 5418

EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.

$46.31

9 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
2300.0
Watts
5.75
Amps
0.05
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-115ac-112 is a precision-made round electromagnet with a 1.5-inch diameter and a holding capacity of 66 lbs. The electromagnet operates on 115 volts AC and is designed for use in various applications, including robotics, automation, and material handling systems. The high-quality construction of the electromagnet ensures reliable and efficient performance. The product is suitable for use by mechanical and electrical engineers looking for a reliable, high-performance electromagnet for their projects.
