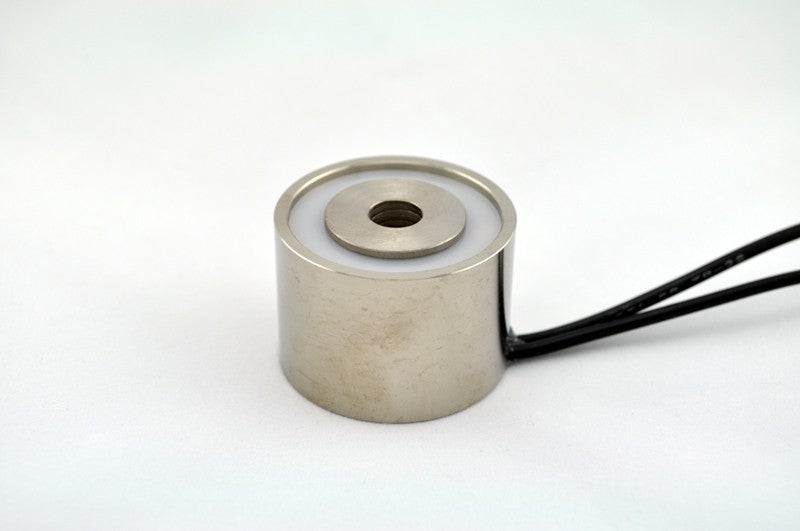

EM150-110-122 - Round Electromagnet 1.5 inch Dia. 110 volts DC - Holding 66 lbs. image 0

EM150-110-122 - Round Electromagnet 1.5 inch Dia. 110 volts DC - Holding 66 lbs.

$39.81
Skip to product information
EM150-110-122 - Round Electromagnet 1.5 inch Dia. 110 volts DC - Holding 66 lbs. image 0
SKU: 5865

EM150-110-122 - Round Electromagnet 1.5 inch Dia. 110 volts DC - Holding 66 lbs.

$39.81

13 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
2200.0
Watts
5.5
Amps
0.05
Duty
Continuous
Current
DC
Voltage
110
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-110-122 Round Electromagnet is a high-quality, precision-made product capable of holding 66 lbs. This 1.5 inch diameter electromagnet operates at 110 volts DC and is ideal for a variety of industrial and commercial applications. Common uses include lifting, clamping, sorting, and conveying ferrous materials, as well as magnetic locks, door release mechanisms, and security systems. With its robust construction and reliable performance, the EM150-110-122 is the perfect solution for engineers seeking a durable, high-performance electromagnet.
