SKU:
6560

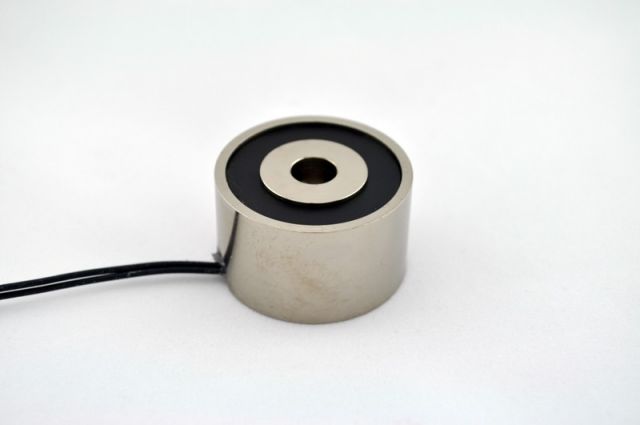

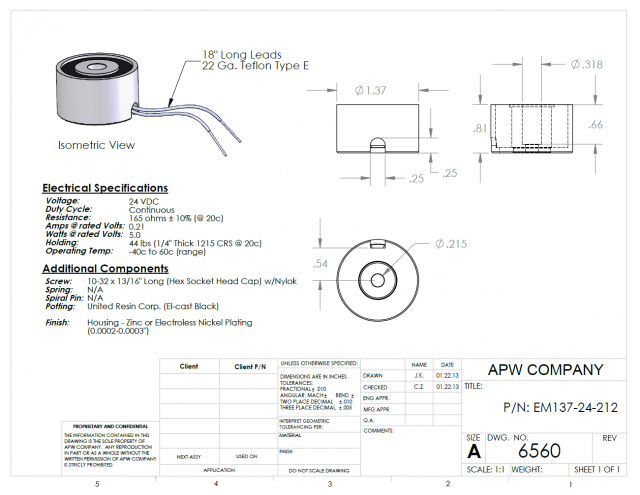

EM137-24-212 - Round Electromagnet 1.375 inch Dia. 24 volts DC - Holding 44 lbs.
$30.86
2 in stock
Specifications
Height (mm)
20.57
Height (in)
0.81
Outer Diameter (mm)
34.92
Outer Diameter (in)
1.375
Holding Force (Lbs.)
44
Ohms
120.0
Watts
4.8
Amps
0.2
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 13/16
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2
