SKU:
7024

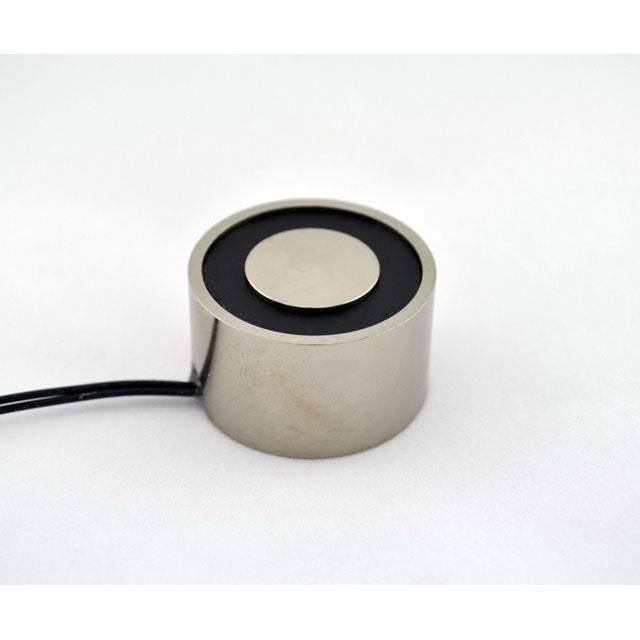

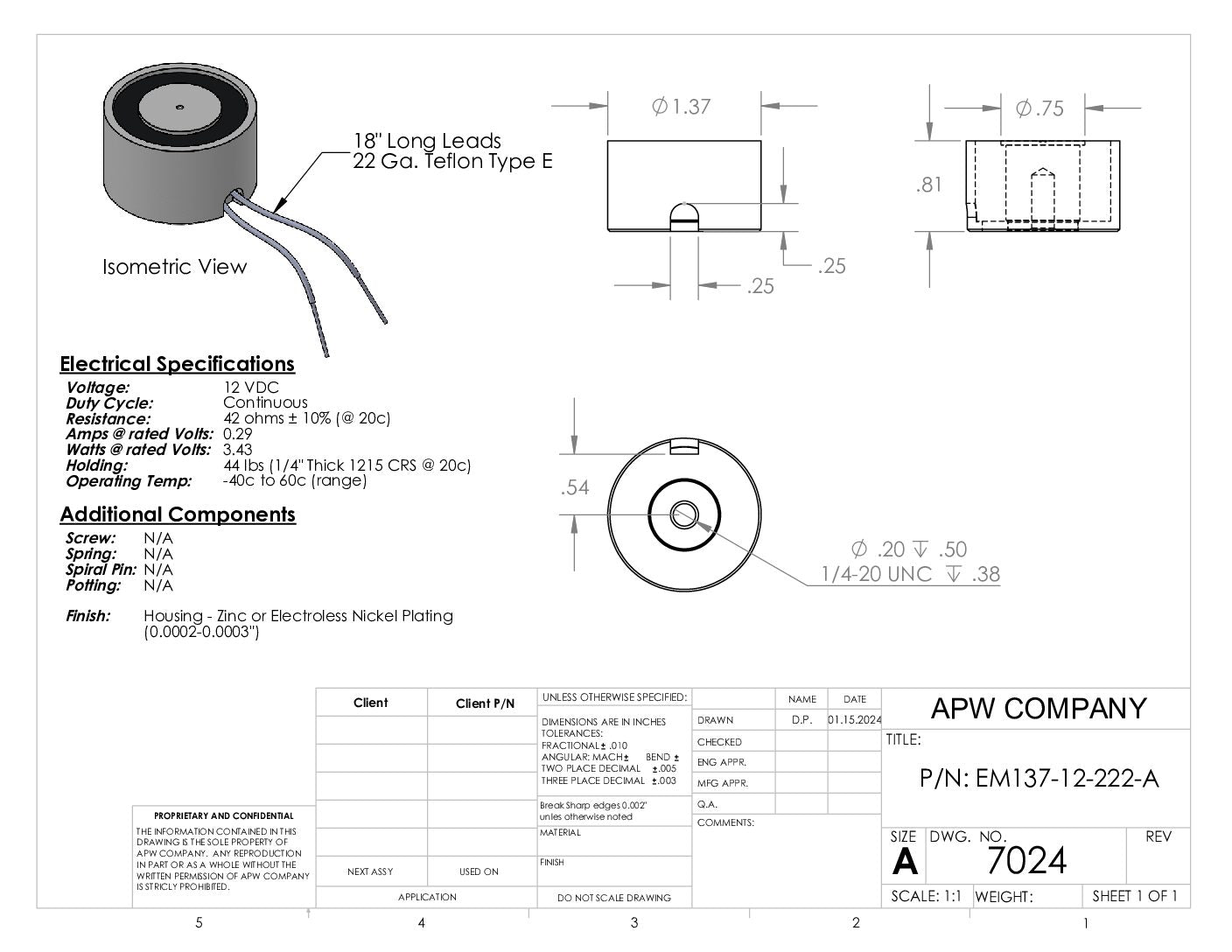

EM137-12-222-A - Round Electromagnet 1.375 inch Dia. 12 VDC - Holding 44 lbs.
$29.24
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Specifications
Height (mm)
20.57
Height (in)
0.81
Outer Diameter (mm)
34.92
Outer Diameter (in)
1.375
Holding Force (Lbs.)
44
Ohms
41.38
Watts
3.48
Amps
0.29
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Mounting Option
Rear Tapped 1/4-20
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2
