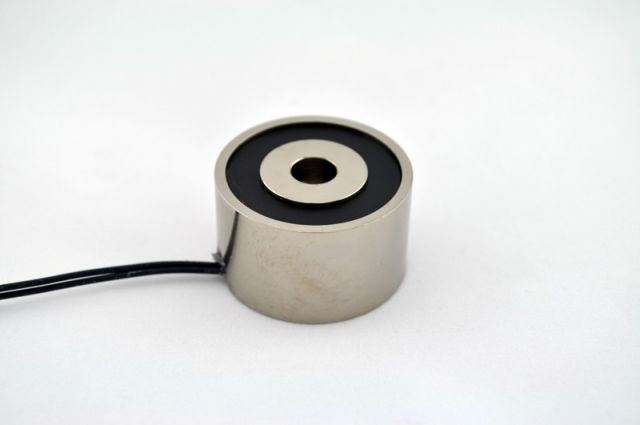

EM137-115ac-222 - Round Electromagnet 1.375 inch Dia. 115 volts AC - Holding 44 lbs. image 0

EM137-115ac-222 - Round Electromagnet 1.375 inch Dia. 115 volts AC - Holding 44 lbs.

$34.91
Skip to product information
EM137-115ac-222 - Round Electromagnet 1.375 inch Dia. 115 volts AC - Holding 44 lbs. image 0
SKU: 5468

EM137-115ac-222 - Round Electromagnet 1.375 inch Dia. 115 volts AC - Holding 44 lbs.

$34.91

5 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
20.57
Height (in)
0.81
Outer Diameter (mm)
34.92
Outer Diameter (in)
1.375
Holding Force (Lbs.)
44
Ohms
2875.0
Watts
4.6
Amps
0.04
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 13/16
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM137-115ac-222 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications. With a diameter of 1.375 inches and the ability to hold up to 44 lbs. of weight, this device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 115 volts AC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM137-115ac-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
