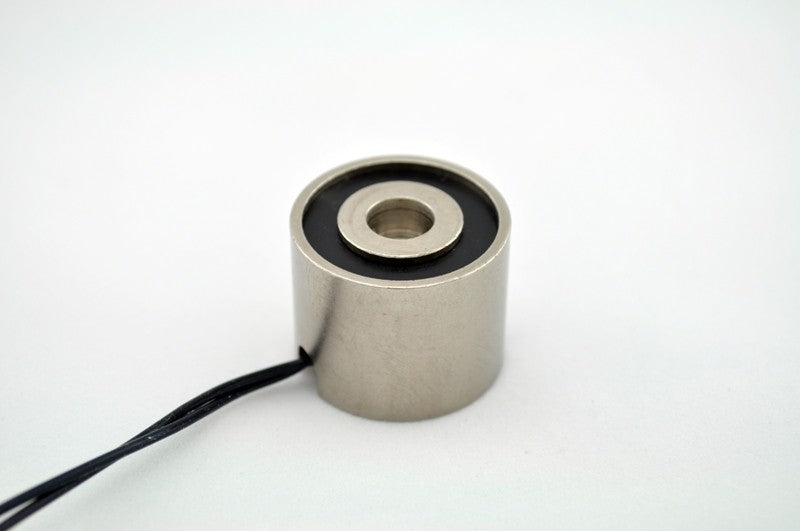

EM100-6-122 - Round Electromagnet 1 inch Dia. 6 volts DC - Holding 19 lbs. image 0

EM100-6-122 - Round Electromagnet 1 inch Dia. 6 volts DC - Holding 19 lbs.

$27.23
Skip to product information
EM100-6-122 - Round Electromagnet 1 inch Dia. 6 volts DC - Holding 19 lbs. image 0
SKU: 5537

EM100-6-122 - Round Electromagnet 1 inch Dia. 6 volts DC - Holding 19 lbs.

$27.23
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

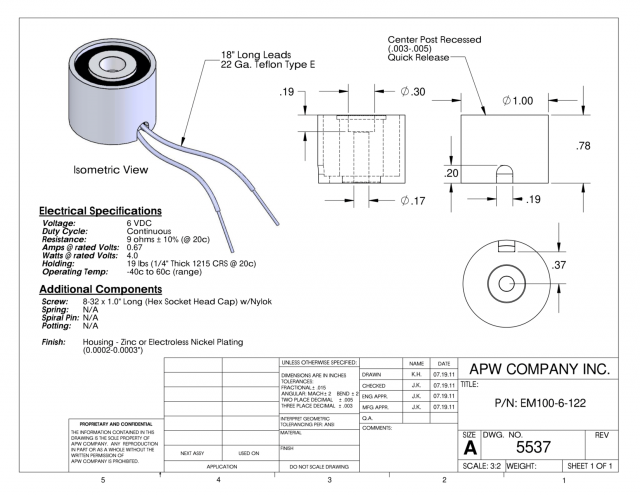

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
19
Ohms
9.09
Watts
3.96
Amps
0.66
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-6-122 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications. With a diameter of 1 inch and the ability to hold up to 19 lbs. of weight, this electromagnet is ideal for applications where a compact and reliable solution is required. The device is powered by 6 volts DC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, to name a few. The EM100-6-122 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
