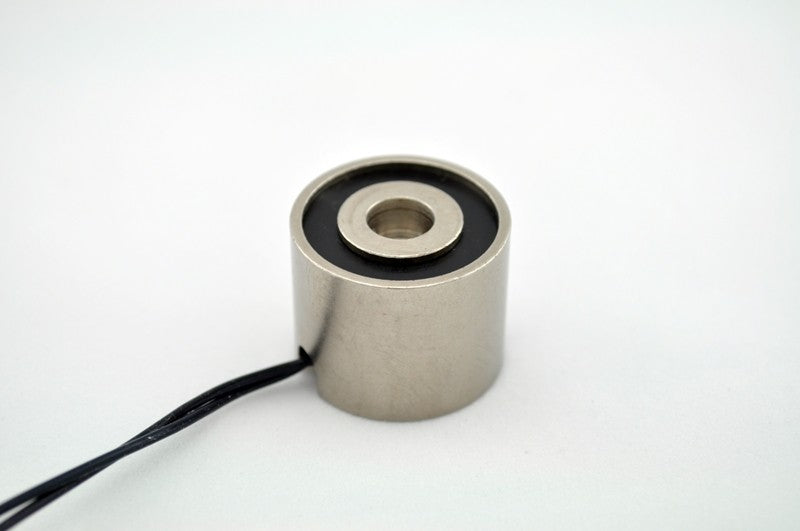

EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 0

EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.

$67.23
Skip to product information
EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 0
  • EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 0
  • EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 1
EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.
SKU: 6189

EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.

$67.23
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
25
Ohms
1.64
Watts
5.49
Amps
1.83
Duty
Continuous
Current
DC
Voltage
3
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-3H-222 is a precision-made round electromagnet designed for various mechanical and electrical applications. This high-quality device has a 1-inch diameter and can hold up to 25 lbs. of weight, making it ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 3 volts DC and offers exceptional performance and reliability. Electromagnets are commonly used in industrial manufacturing, automation, robotics, and security systems, among other applications. The EM100-3H-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.

SKU: 6189
Category: Electromagnets , Round Electromagnets
Tags: 1 inch Diameter , 1.83 , 25 , 25 lbs Holding Capacity , 3 , 3 volts DC , 8-32 x 1 , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM100-3H-222 , Magnetic Attraction , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt
