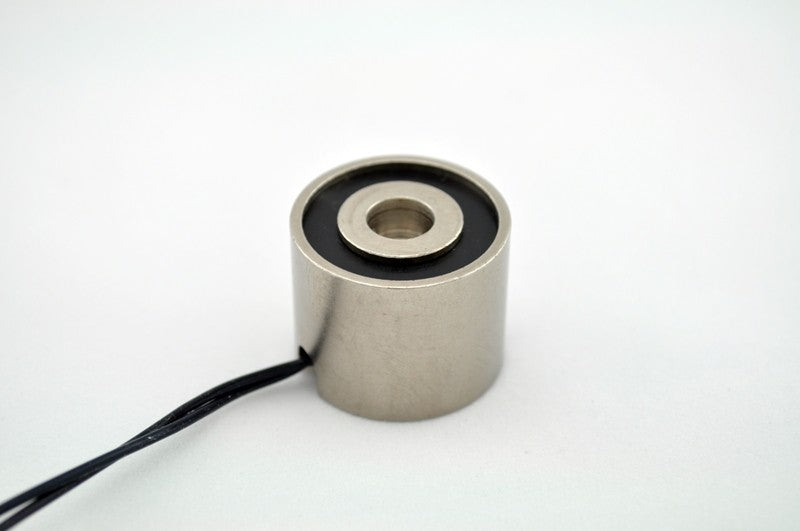

EM100-3-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 0

EM100-3-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.

$27.23
Skip to product information
EM100-3-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs. image 0
SKU: 6303

EM100-3-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.

$27.23
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

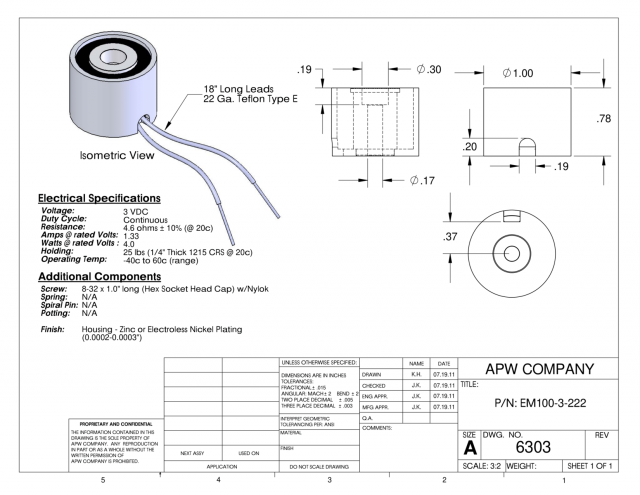

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
25
Ohms
2.26
Watts
3.99
Amps
1.33
Duty
Continuous
Current
DC
Voltage
3
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-3-222 is a precision-made round electromagnet designed for use in various mechanical and electrical applications. With a 1-inch diameter and the ability to hold up to 25 lbs. of weight, this high-quality device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 3 volts DC and offers exceptional performance and reliability. Electromagnets are commonly used in industrial manufacturing, automation, robotics, and security systems, among other applications. The EM100-3-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
