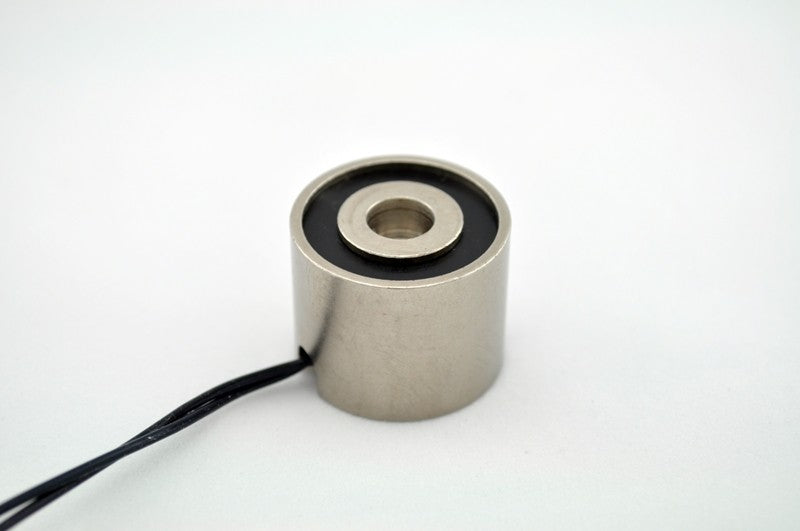

EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs. image 0

EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs.

$32.95
Skip to product information
EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs. image 0
SKU: 4773

EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs.

$32.95
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

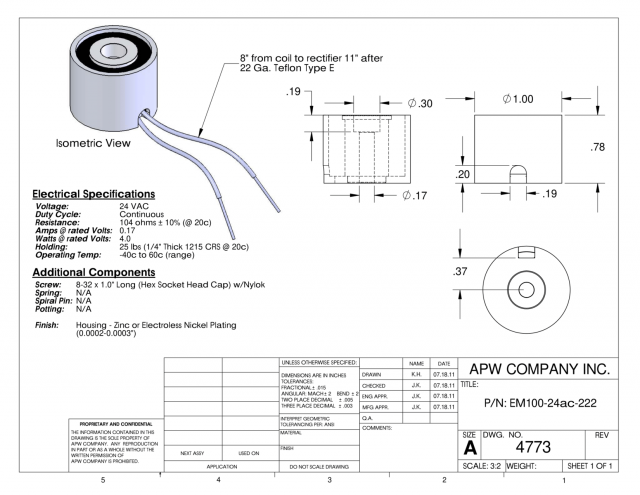

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
25
Ohms
150.0
Watts
3.84
Amps
0.16
Duty
Continuous
Current
AC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-24ac-222 Round Electromagnet is a high-quality, precision-made product designed for various mechanical and electrical applications. With a 1-inch diameter and 24 volts AC, it is capable of holding up to 25 lbs. The electromagnet is suitable for use in robotics, material handling equipment, and security systems. Its superior strength and durability make it a reliable choice for industrial settings. The product's design ensures easy installation and maximum efficiency. With its precise engineering, the EM100-24ac-222 is a top-of-the-line electromagnet for your application needs.
