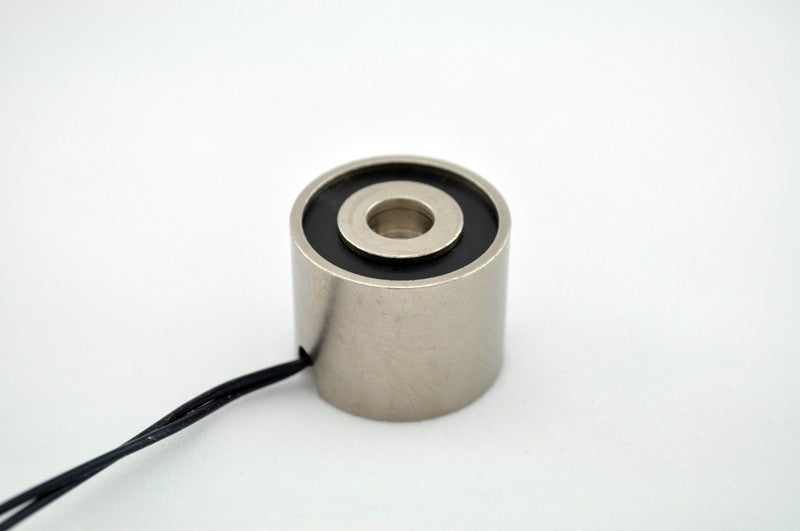

EM100-24ac-122 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 19 lbs. image 0

EM100-24ac-122 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 19 lbs.

$32.95
Skip to product information
EM100-24ac-122 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 19 lbs. image 0
SKU: 5532

EM100-24ac-122 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 19 lbs.

$32.95
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
19
Ohms
150.0
Watts
3.84
Amps
0.16
Duty
Continuous
Current
AC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-24ac-122 Round Electromagnet is a highly reliable and precise electromagnet that features a 1 inch diameter and a 24 volts AC power source, holding up to 19 lbs. Its high-quality construction and precision make it ideal for a variety of applications in mechanical and electrical engineering, including robotics, automation, and machinery. This product is built to last and is engineered to meet the high standards and needs of professionals in these fields.
