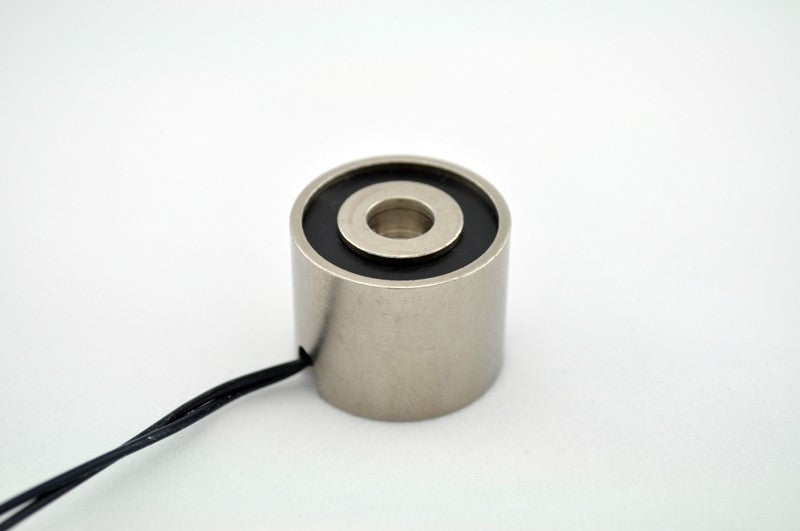

EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs. image 0

EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs.

$27.23
Skip to product information
EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs. image 0
SKU: 6483

EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs.

$27.23
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

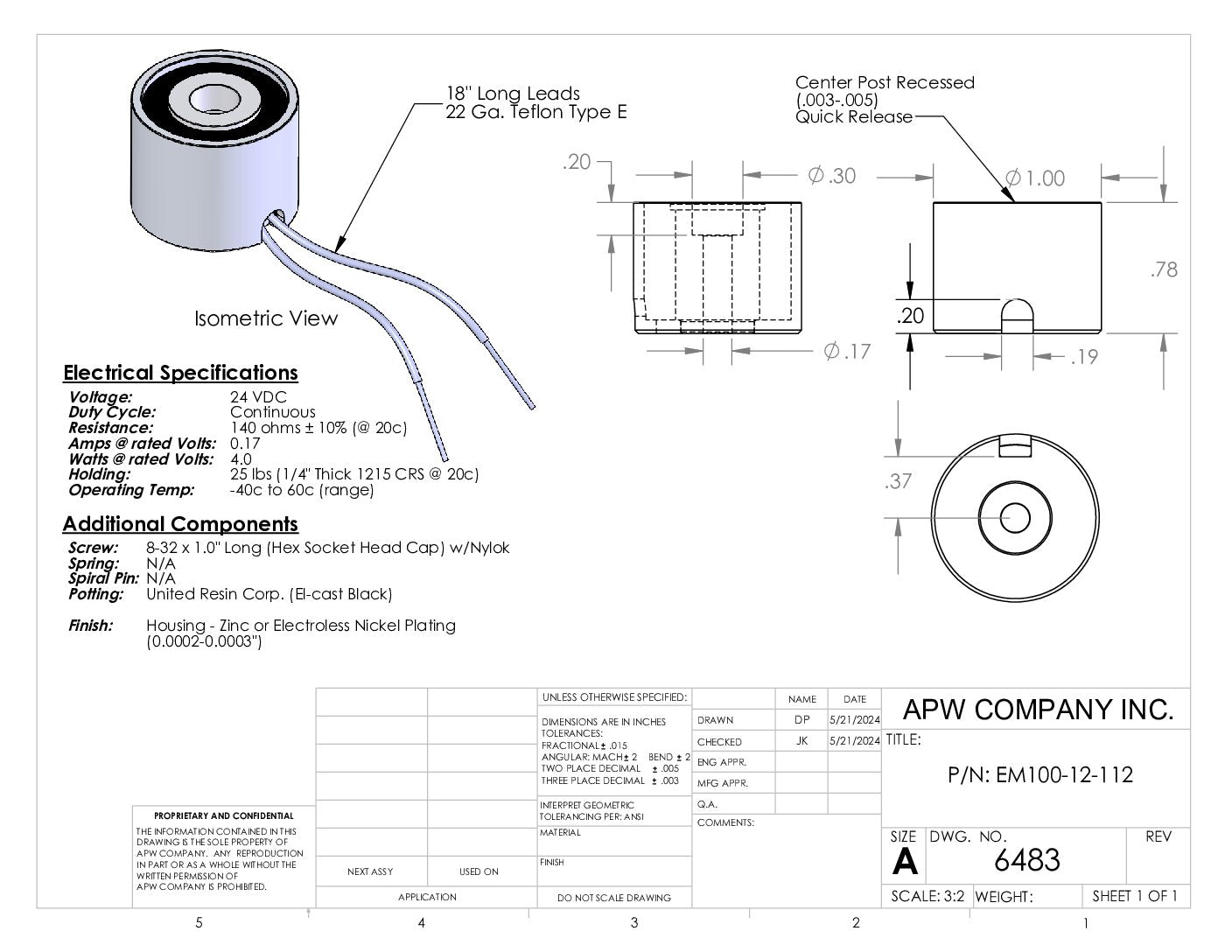

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
19
Ohms
141.18
Watts
4.08
Amps
0.17
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-24-112 is a precision-made, high-quality round electromagnet with a 1 inch diameter and a holding capacity of 19 lbs. Operating on 24 volts DC, this electromagnet is suitable for use in a variety of applications including robotics, automation, and industrial machinery. With its high holding force and durable construction, the EM100-24-112 is designed to provide reliable and consistent performance in demanding environments. Whether you need to control the movement of materials or secure components in place, this electromagnet is an excellent choice for your engineering needs.
