EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs.

$32.00
Skip to product information
EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs. image 0
  • EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs. image 0
EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs.
SKU: 6430

EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs.

$32.00
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
19
Ohms
36.36
Watts
3.96
Amps
0.33
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

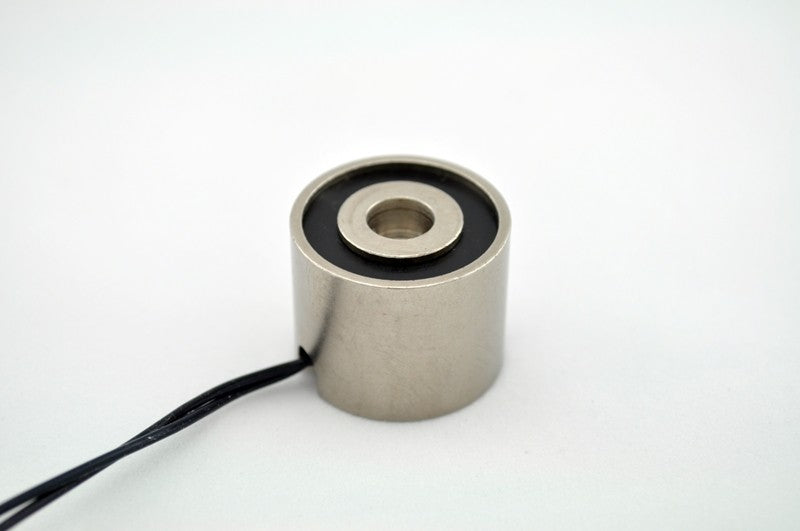

The EM100-12-112 Round Electromagnet is a high-quality precision-made product designed for applications requiring a strong magnetic force. With a 1-inch diameter and a holding capacity of 19 lbs. at 12 volts DC, it is suitable for use in various industries such as manufacturing, automation, and transportation. The electromagnet is built to withstand extreme environments and has a long lifespan. Its compact design and easy installation make it a versatile choice for a wide range of applications.

SKU: 6430
Category: Electromagnets , Round Electromagnets
Tags: 0.33 , 1 inch Diameter , 12 , 12V DC , 19 , 19 lbs Holding , 8-32 x 1 , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM100-12-122 , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
