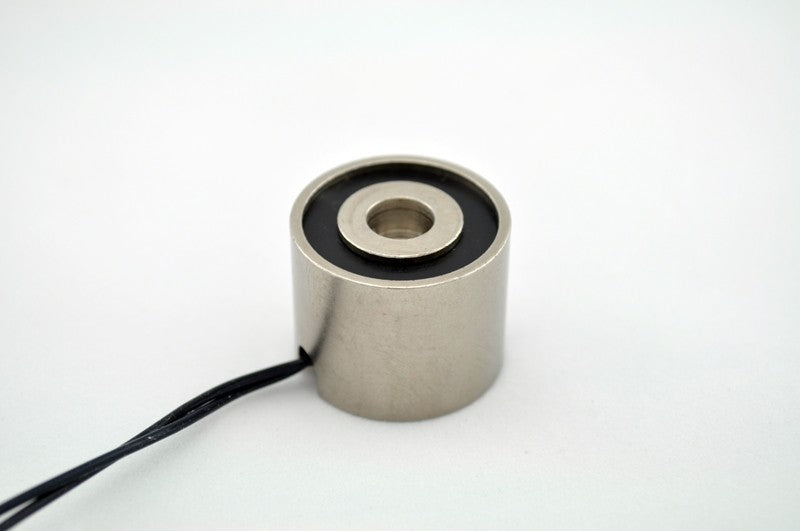

EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs. image 0

EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs.

$32.95
Skip to product information
EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs. image 0
SKU: 4772

EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs.

$32.95
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

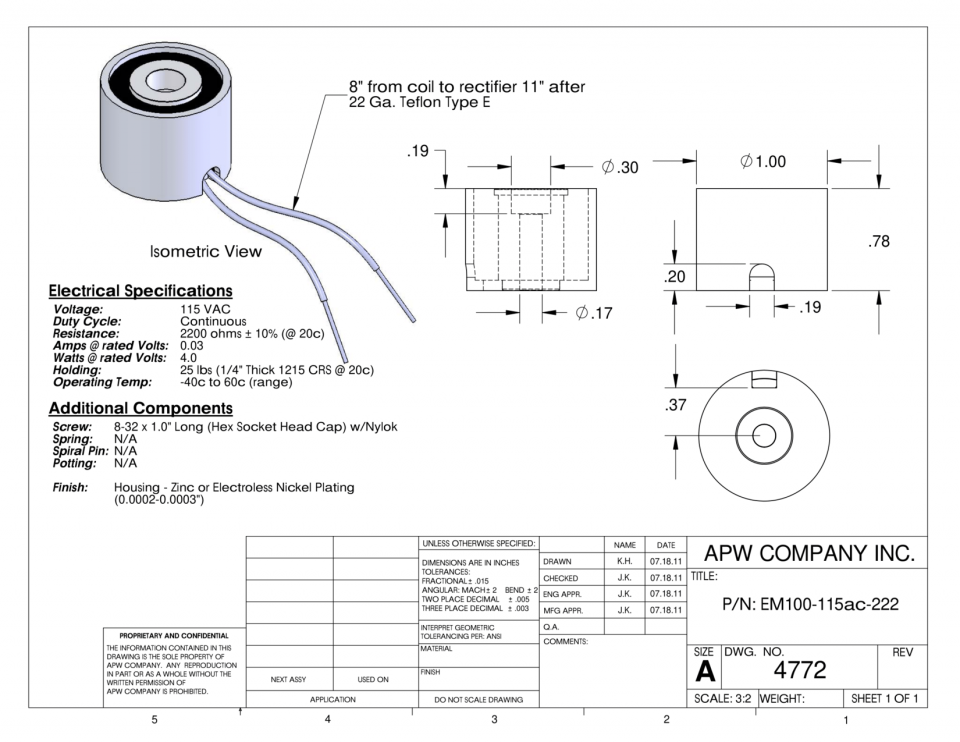

Specifications

Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
25
Ohms
3833.33
Watts
3.45
Amps
0.03
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM100-115ac-222 is a high-quality, precision-made round electromagnet with a 1 inch diameter, capable of holding up to 25 lbs with 115 volts AC power. It is ideal for a wide range of applications where strong holding forces are required, such as in the automation industry for sorting and handling metal components, in the construction industry for holding large steel parts in place during welding or assembly, and in the aerospace industry for securely holding metal parts during testing and assembly.
