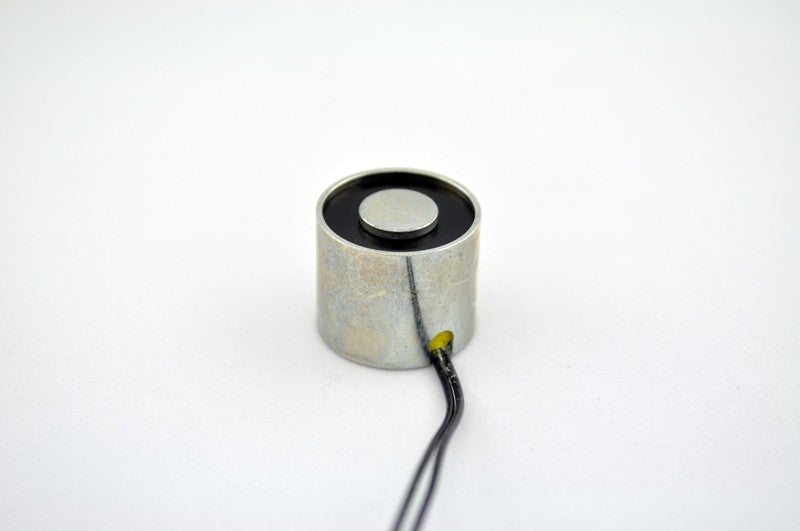

EM075-6-222 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs. image 0

EM075-6-222 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.

$29.24
Skip to product information
EM075-6-222 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs. image 0
SKU: 6035

EM075-6-222 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.

$29.24

12 in stock

Quantity
Discount (%)
Price

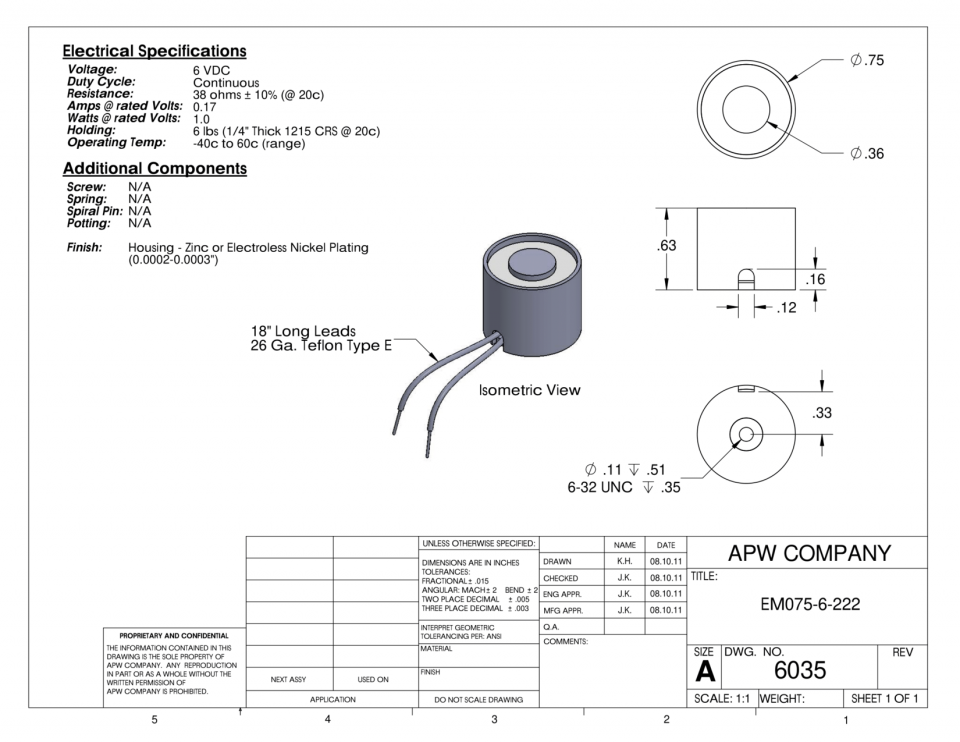

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
6
Ohms
37.5
Watts
0.96
Amps
0.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-6-222 Round Electromagnet is a high quality, precision made product designed for use in a variety of industrial and commercial applications. With a 0.75 inch diameter and the ability to hold up to 6 lbs. of weight, this electromagnet is ideal for use in automated sorting and assembly systems, robotic machinery, and other applications where a strong and reliable magnetic field is required. The 6 volts DC power supply allows for efficient and reliable operation, while the durable construction ensures a long service life even in harsh operating conditions.
