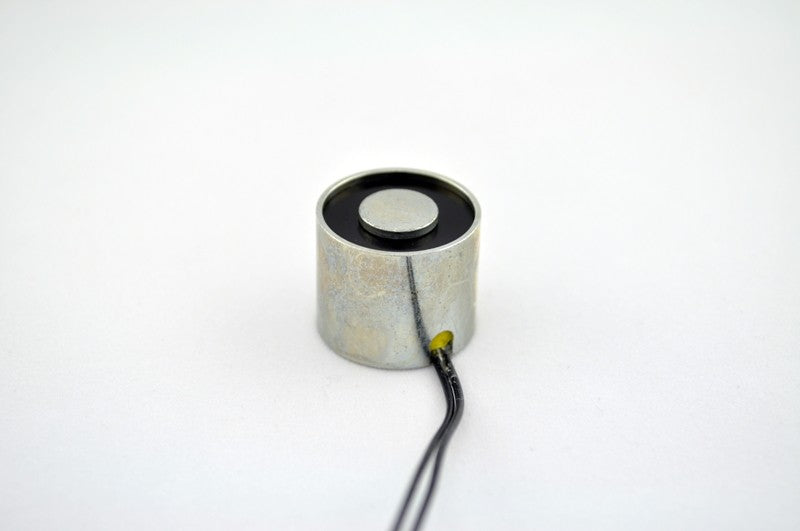

EM075-6-212 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs. image 0

EM075-6-212 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.

$34.10
Skip to product information
EM075-6-212 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs. image 0
SKU: 4955

EM075-6-212 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.

$34.10
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
6
Ohms
37.5
Watts
0.96
Amps
0.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-6-212 is a round electromagnet with a diameter of 0.75 inches, designed to operate at 6 volts DC and capable of holding 6 lbs. This high-quality and precision-made product can be used in various applications, such as in automated machinery, robotics, and security systems. With its compact size and strong holding force, this round electromagnet can provide reliable and efficient performance in a range of industrial and commercial settings. Its durable design ensures long-lasting performance, making it an ideal choice for demanding applications.
