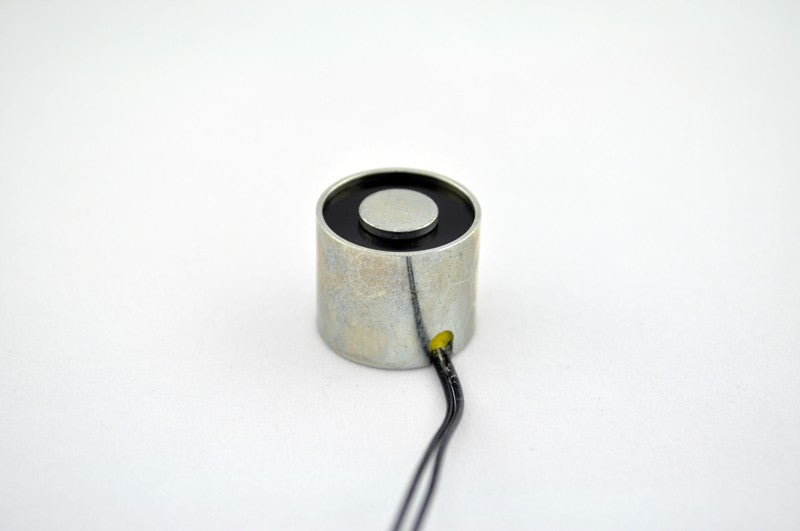

EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs. image 0

EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.

$29.24
Skip to product information
EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs. image 0
SKU: 6040

EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.

$29.24

10 in stock

Quantity
Discount (%)
Price

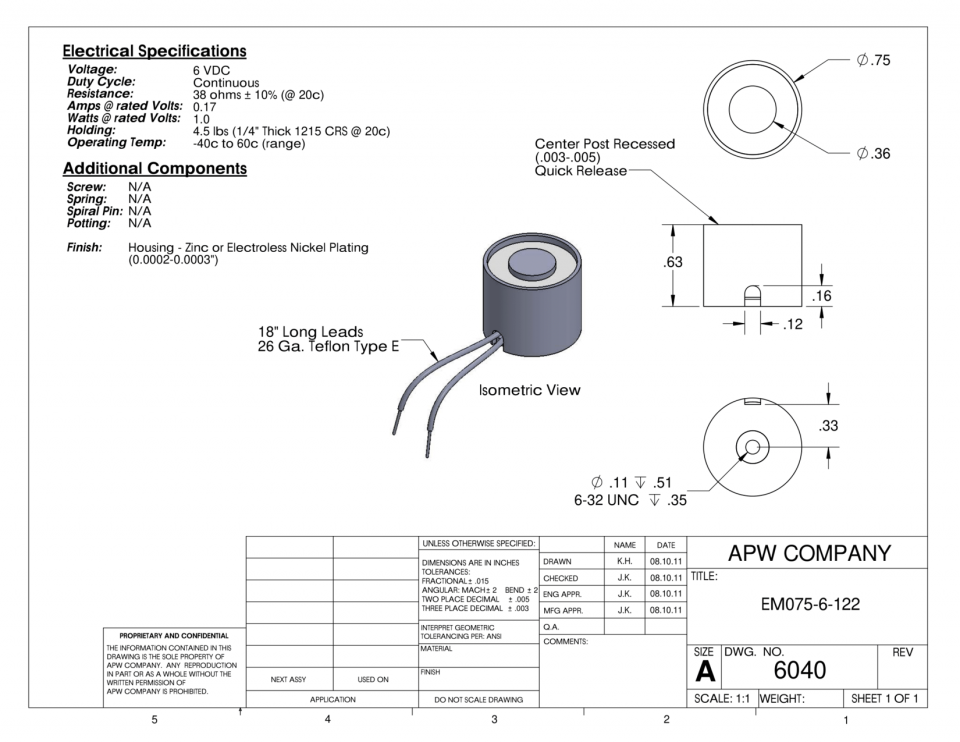

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
4.5
Ohms
37.5
Watts
0.96
Amps
0.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-6-122 is a high-quality, precision-made round electromagnet with a 0.75-inch diameter and 6 volts DC, capable of holding up to 4.5 lbs. This electromagnet is designed to provide reliable and efficient performance in a variety of applications, including automated assembly, material handling, and robotics. With its compact size and robust construction, this electromagnet is ideal for use in space-constrained environments and demanding industrial settings where precision and reliability are paramount.
