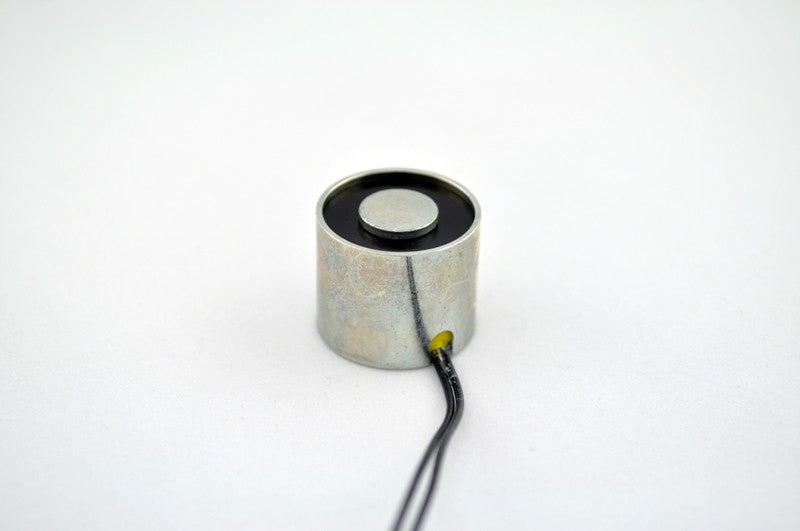

EM075-6-112 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs. image 0

EM075-6-112 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.

$34.10
Skip to product information
EM075-6-112 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs. image 0
SKU: 5850

EM075-6-112 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.

$34.10

9 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
4.5
Ohms
37.5
Watts
0.96
Amps
0.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-6-112 is a high-performance round electromagnet with a diameter of 0.75 inches and a holding capacity of 4.5 lbs. This precision-made product operates on 6 volts DC and is ideal for a variety of applications where electromagnetic force is required. Common applications include door locks, robotic grippers, and vending machines. With its compact design and high holding capacity, this electromagnet offers excellent performance in a wide range of industrial and commercial applications.
