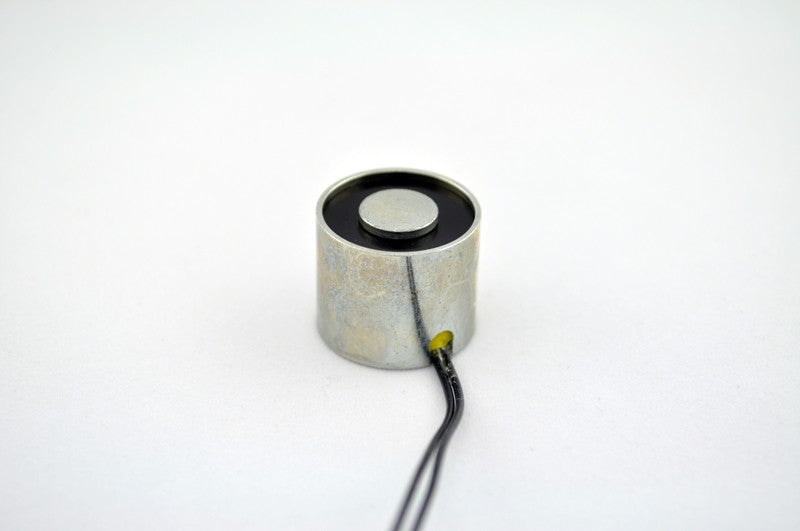

EM075-24-212 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs. image 0

EM075-24-212 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.

$34.09
Skip to product information
EM075-24-212 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs. image 0
SKU: 4953

EM075-24-212 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.

$34.09

70 in stock

Quantity
Discount (%)
Price

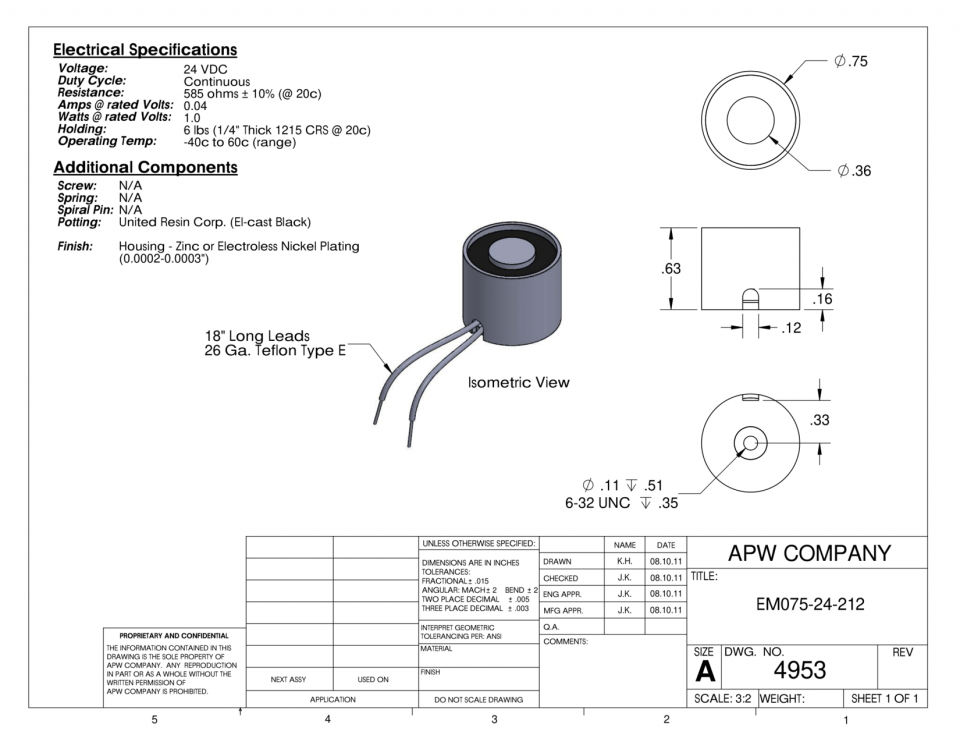

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
6
Ohms
600.0
Watts
0.96
Amps
0.04
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-24-212 is a high-performance round electromagnet designed for use in a wide range of applications requiring a reliable and efficient holding force of 6 lbs. This precision-made electromagnet features a 0.75-inch diameter, 24 volts DC voltage rating, and a durable construction that ensures long-lasting performance in demanding environments. The EM075-24-212 is ideal for use in various industrial applications such as robotics, automation, security systems, and material handling equipment. Its compact size and powerful holding force make it a popular choice for a wide range of engineering projects.
