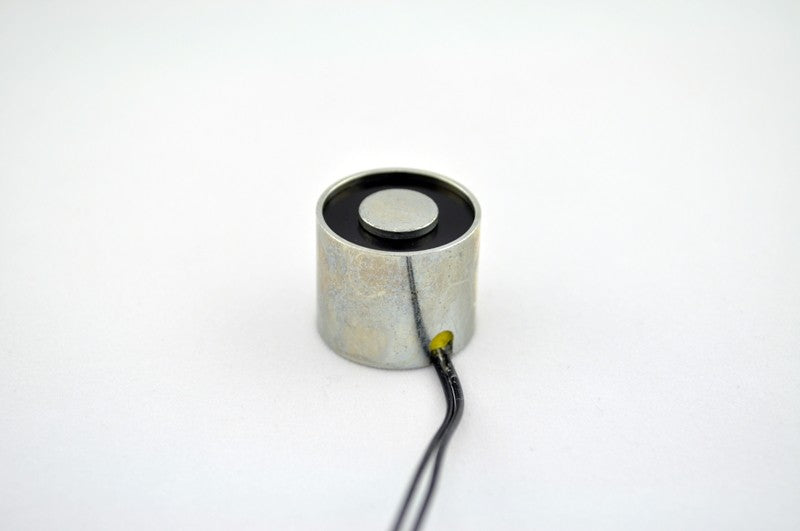

EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs. image 0

EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.

$34.10
Skip to product information
EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs. image 0
SKU: 6036

EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.

$34.10

1 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
6
Ohms
600.0
Watts
0.96
Amps
0.04
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
254.0

Description

The EM075-24-212-B round electromagnet is a precision-made, high-quality product designed for a wide range of industrial and commercial applications. With a holding force of 6 lbs. and a diameter of 0.75 inches, this electromagnet is suitable for use in various machinery and equipment such as automated assembly lines, sorting systems, and conveyor belts. Its 24 volts DC power supply provides efficient and reliable operation, making it an excellent choice for use in demanding environments. The EM075-24-212-B is a robust and durable electromagnet that is sure to deliver long-lasting performance.
