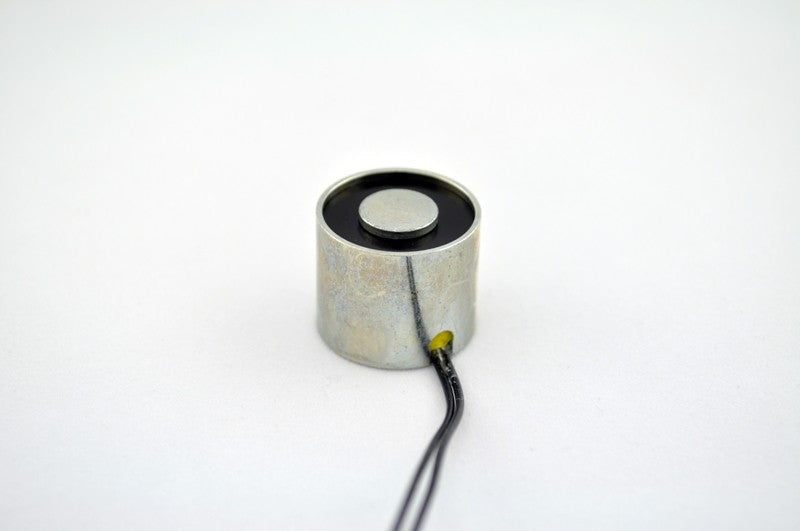

EM075-24-112 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 4.5 lbs.

$34.10
Skip to product information
EM075-24-112 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 4.5 lbs. image 0
SKU: 5848

EM075-24-112 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 4.5 lbs.

$34.10

11 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
4.5
Ohms
600.0
Watts
0.96
Amps
0.04
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
482.6

Description

The EM075-24-112 is a precision-made round electromagnet with a diameter of 0.75 inches, capable of holding up to 4.5 lbs. at 24 volts DC. This high-quality electromagnet is ideal for various applications where controlled magnetic attraction is required, such as in sorting machines, clamping devices, and automation equipment. Its compact size and robust construction make it easy to integrate into existing systems, and its reliable performance ensures consistent operation. The EM075-24-112 is a durable and efficient solution for electromagnet needs in mechanical and electrical engineering projects.
