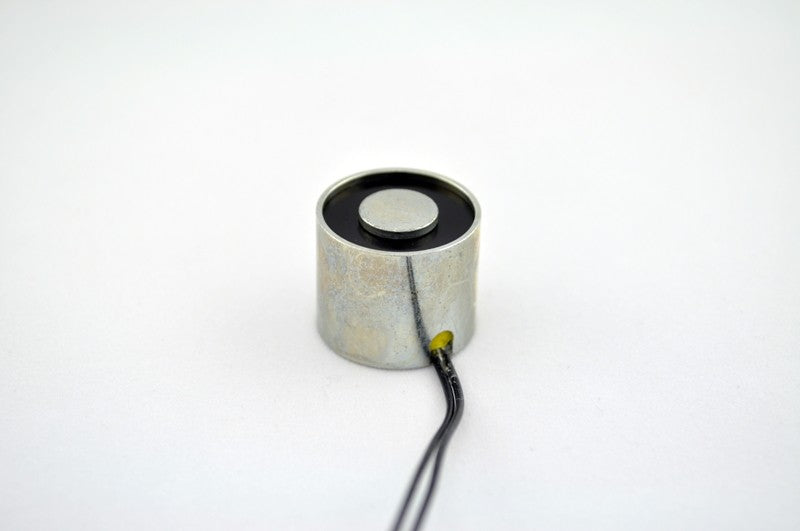

EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs. image 0

EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs.

$39.31
Skip to product information
EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs. image 0
SKU: 4949

EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs.

$39.31

10 in stock

Quantity
Discount (%)
Price

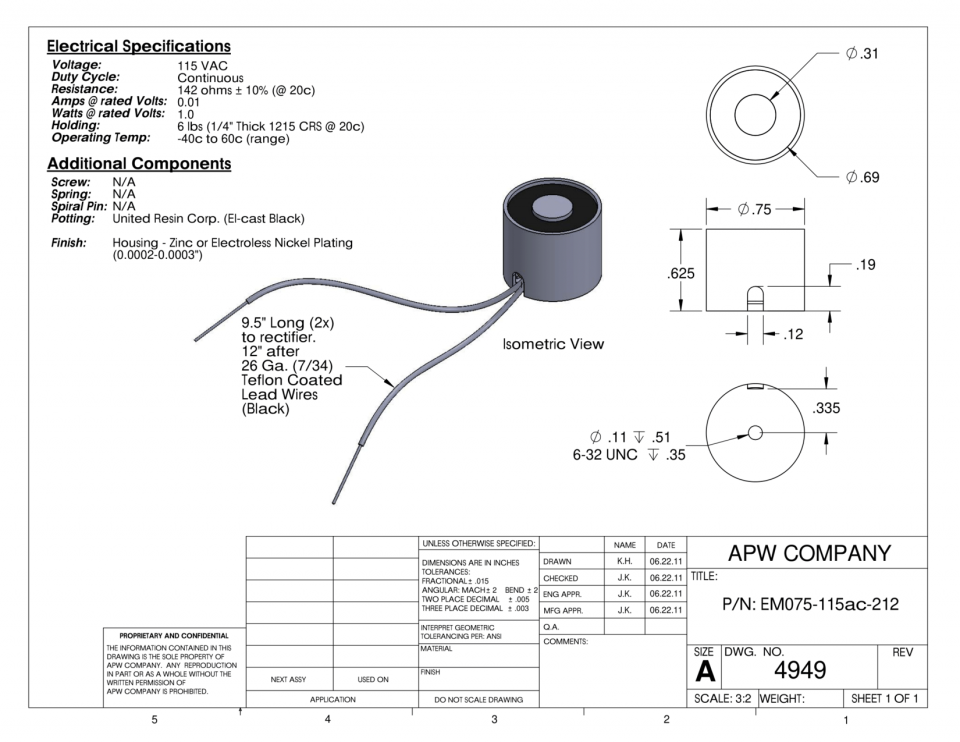

Specifications

Height (mm)
15.75
Height (in)
0.62
Outer Diameter (mm)
19.05
Outer Diameter (in)
0.75
Holding Force (Lbs.)
6
Ohms
11500.0
Watts
1.15
Amps
0.01
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM075-115ac-212 is a round electromagnet with a diameter of 0.75 inches, designed to operate on 115 volts AC and capable of holding up to 6 lbs. This high-quality, precision-made product is ideal for a variety of engineering applications, such as automated manufacturing, material handling, and robotics. Its robust construction and powerful magnetic field make it suitable for use in harsh environments, and its compact size allows for easy integration into existing systems.
