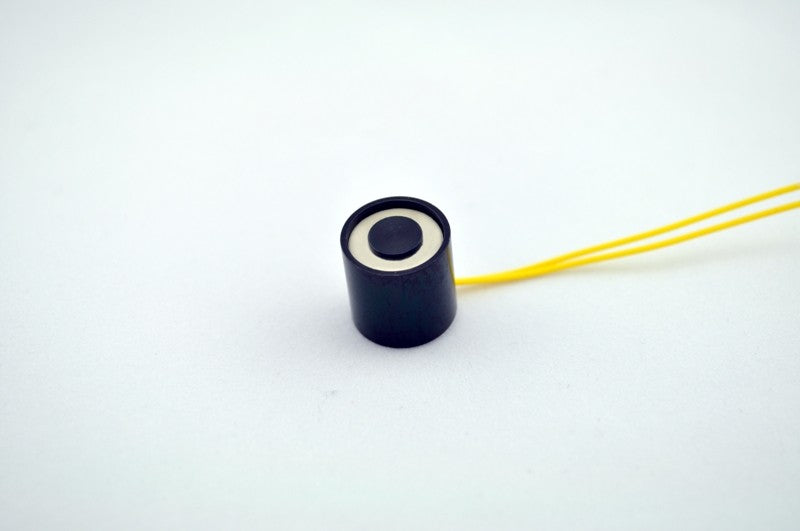

EM050-9-222-A - Round Electromagnet 0.5 inch Dia. 9 volts DC - Holding 2 lbs.

$30.93
Skip to product information
EM050-9-222-A - Round Electromagnet 0.5 inch Dia. 9 volts DC - Holding 2 lbs. image 0
SKU: 6519

EM050-9-222-A - Round Electromagnet 0.5 inch Dia. 9 volts DC - Holding 2 lbs.

$30.93

7 in stock

Quantity
Discount (%)
Price

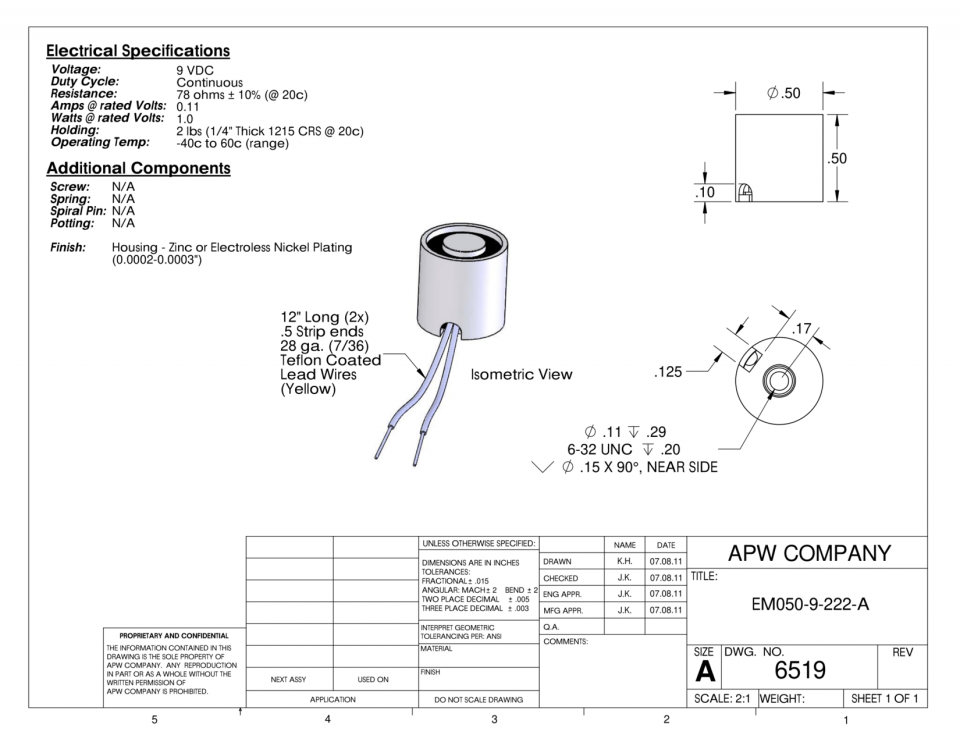

Specifications

Height (mm)
12.7
Height (in)
0.5
Outer Diameter (mm)
12.7
Outer Diameter (in)
0.5
Holding Force (Lbs.)
2
Ohms
81.82
Watts
0.99
Amps
0.11
Duty
Continuous
Current
DC
Voltage
9
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
28
Lead Wire Type
TFE
Lead Wire Length (mm)
279.4

Description

The EM050-9-222-A is a high-quality round electromagnet with a 0.5 inch diameter and a holding capacity of 2 lbs. This precision-made product operates on 9 volts DC and is ideal for use in various mechanical and electrical applications that require a reliable magnetic force. Its compact size and efficient energy consumption make it suitable for use in small devices, such as handheld electronic tools, robotics, and magnetic locks. This product is designed to deliver superior performance, durability, and consistency in challenging environments.
