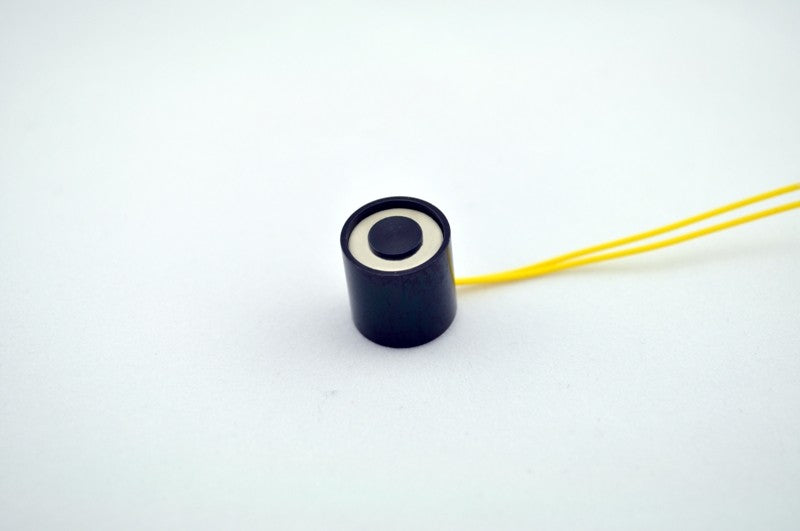

EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs. image 0

EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs.

$70.94
Skip to product information
EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs. image 0
SKU: 6518

EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs.

$70.94

34 in stock

Quantity
Discount (%)
Price

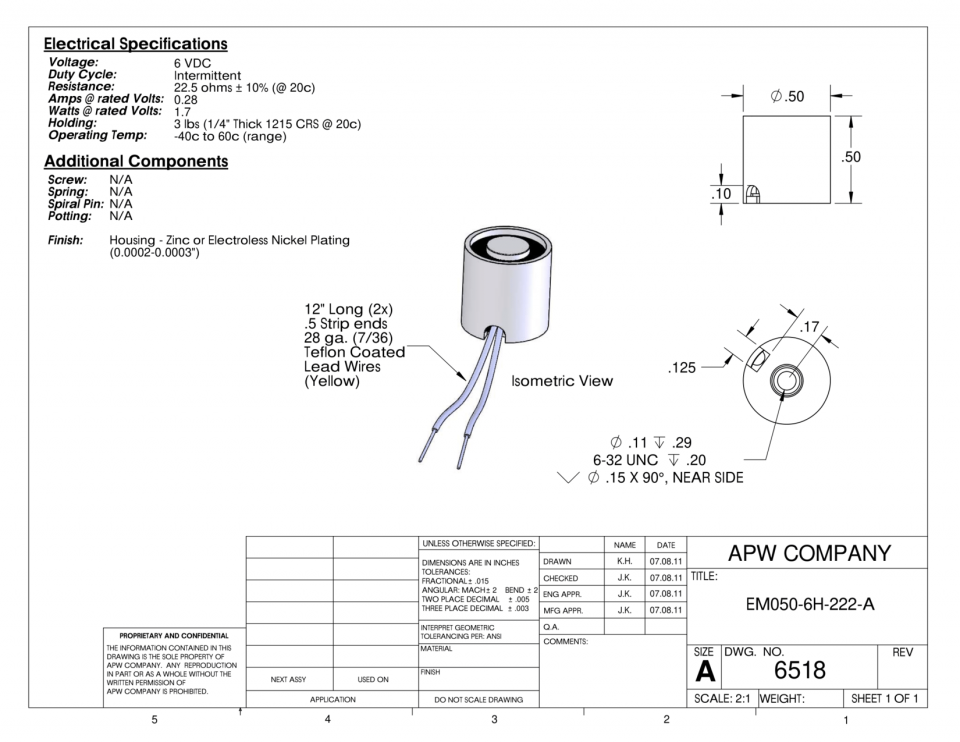

Specifications

Height (mm)
12.7
Height (in)
0.5
Outer Diameter (mm)
12.7
Outer Diameter (in)
0.5
Holding Force (Lbs.)
3
Ohms
21.43
Watts
1.68
Amps
0.28
Duty
Intermittent
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
28
Lead Wire Type
TFE
Lead Wire Length (mm)
279.4

Description

The EM050-6H-22-A Round Electromagnet is a high-quality, precision-made product designed for applications requiring a holding force of 3 lbs. The 0.5 inch diameter electromagnet operates on a 6-volt DC power supply and is ideal for use in a wide range of applications, including automation, robotics, and machinery. With its durable construction and reliable performance, this electromagnet is an excellent choice for engineers and manufacturers seeking a high-quality, cost-effective solution for their electromagnet needs.
