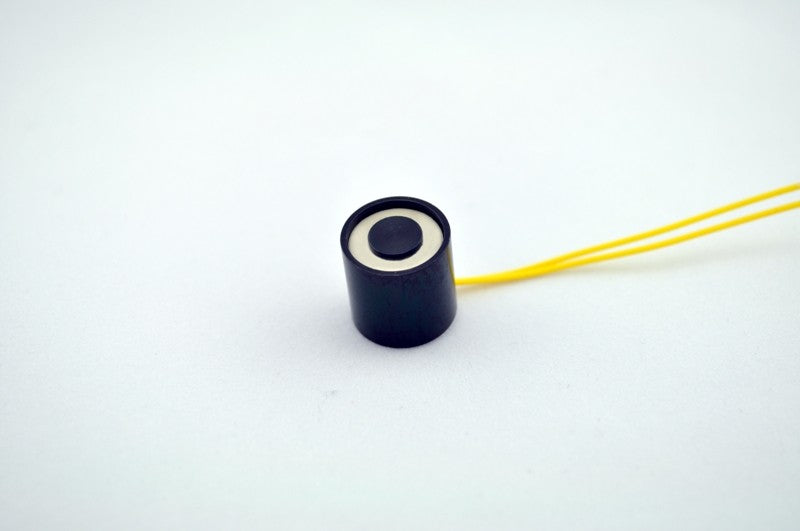

EM050-6-222-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 2 lbs. image 0

EM050-6-222-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 2 lbs.

$30.94
Skip to product information
EM050-6-222-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 2 lbs. image 0
SKU: 6516

EM050-6-222-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 2 lbs.

$30.94

7 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
12.7
Height (in)
0.5
Outer Diameter (mm)
12.7
Outer Diameter (in)
0.5
Holding Force (Lbs.)
2
Ohms
37.5
Watts
0.96
Amps
0.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
28
Lead Wire Type
TFE
Lead Wire Length (mm)
279.4

Description

The EM050-6-222-A is a high-quality, precision-made round electromagnet with a 0.5 inch diameter and a holding capacity of 2 lbs. It is designed to operate at 6 volts DC and can be used in various applications, including in mechanical and electrical systems, robotics, and automation. With its reliable and efficient performance, this product is an excellent choice for engineers seeking electromagnets that offer excellent holding strength, consistent performance, and exceptional durability.
