SKU:
6460

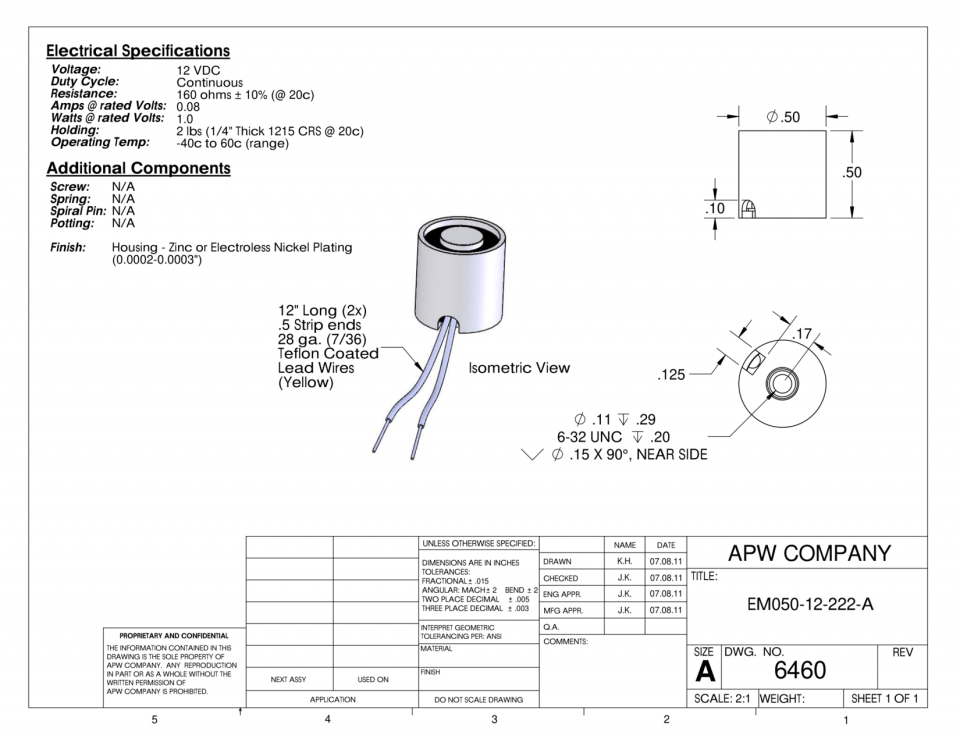

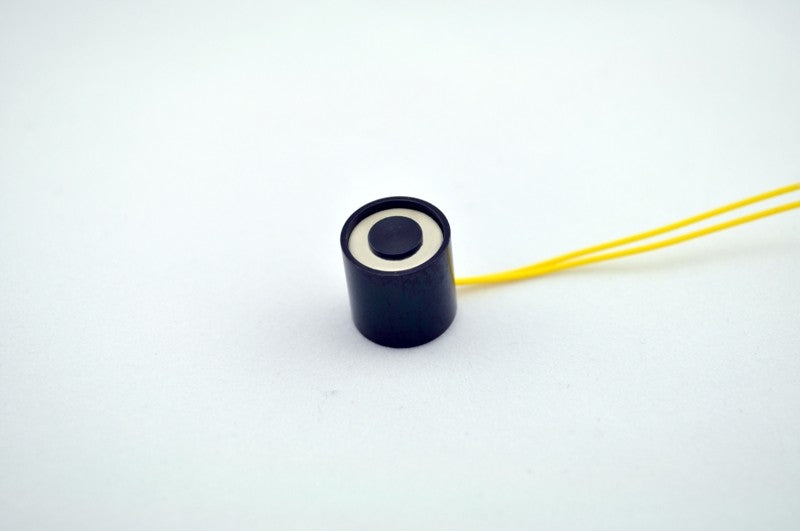

EM050-12-222-A - Round Electromagnet 0.5 inch Dia. 12 volts DC - Holding 2 lbs.
$30.92
54 in stock
Specifications
Height (mm)
12.7
Height (in)
0.5
Outer Diameter (mm)
12.7
Outer Diameter (in)
0.5
Holding Force (Lbs.)
2
Ohms
150.0
Watts
0.96
Amps
0.08
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 6-32
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
28
Lead Wire Type
TFE
Lead Wire Length (mm)
279.4
